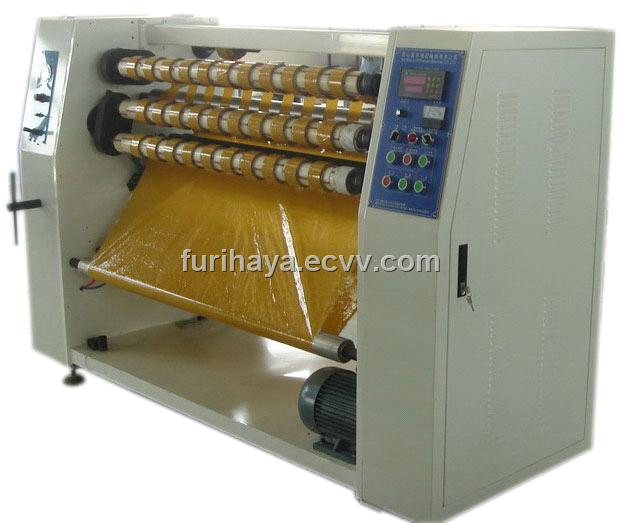

BOPP tape slitting machine

Detailed Product Description

Feature

1. Full-automatic four-shaft exchange is adopted and the efficiency is improved.

2. Stepless speed regulation of frequency conversion and three-step length setting provide extremely smooth rewinding operation to give accurate rewinding length. It can automatically decelerate and stall when operating at high speed.

3. The unreeling tensile force is adopted with pneumatic braking control and the reeling tension is adopted with the dual control equipped with the clutch and the independent slide setting for free adjustment of the tensile force.

4. The curved streth roll is designed to eliminate tape wrinkling during extension and feeding.

5. Pneumatic brake brings the machine to an immediate halt for accurate positioning and labelling.

Main technical parameters:

Model: FR202(210)-1300 FR202(210)-1600

Effective Width: 1320 mm 1600 mm

Max. Unreeling Diameter: 800mm 800mm

Min. Cutting Width: 24mm 24mm

Max. Reeling Diameter(Shaft1") Exchange Four Shafts: 75mm 75mm

Max. Reeling Diameter(Shaft3") Exchange Four Shafts: 150mm 150mm

Max. Reeling Diameter(Shaft3") Exchange Two Shafts: 300mm 300mm

Speed of Machine: 0-180m/min 0-180m/min

Cutting Tool: 0.2×22×60mm 0.2×22×60mm

Power of Whole Machine: 5HP 5.5HP

Place of Origin:	Jiangsu in China
Model No:	FR-202
Brand Name:	FURI
Payment Terms:	L/C,T/T(Bank Transfer),
Minimum Order:	Set/Sets 1
Supply Ability:	Set/Sets\|30\|Month
Package:	export wooden case
Delivery Time:	30days
