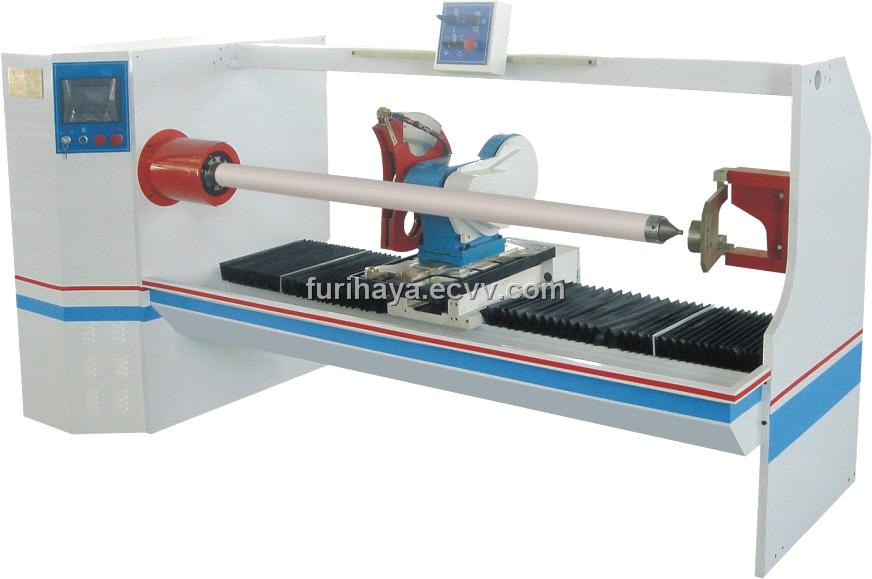

Double sided tape cutting machine

Feature

1. Main driving part: Taiwan AC motor with frequency converter is employed. The acceleration and the deceleration are fast and steady.

2. Central control unit: programmable central control is used and ten sizes can be set on the same shaft for automatic transfer and cutting.

3. Operating panel: all functions are operated on the 7 “MCGS LCD touch panel.

4. Motor control system: the central control system is PLC programmable controller. Various sizes can be set on the same shaft, and the cutting width is adjusted automatically.

5. Cutting positioning system: cutting positioning is controlled by Taiwan servo motor. The imported high precision ball screw is applied to set the size and the linear slide rail is to bear the load of the cutter seat.

6. Blade feeding positioning system: blade feeding is controlled by Taiwan servo motor, and the cutting speed is adjustable in two stages. The efficiency is improved and the best quality is guaranteed.

7. Auto angle adjustment of circular blade: the imported stepping motor is used to calculate the circular blade angle and the angle change is subject to different materials (the angle change range is ±8°). The cutting angle is changed directly when the cutting surface is not smooth, so the efficiency is improved.

8. Quick shaft change system: two kinds of shafts are available and quick change of shafts is applied for different materials.

Main Technical Parameters
