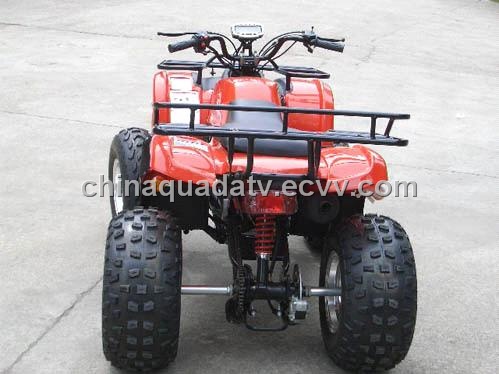

ATV (ATV250-8)

Details:

1) Engine: 4-stroke, single-cylinder, air-cooled, 5-speed, reverse

2) Displacement: 250cc

3) Max. Speed: 68km/h

4) Bore x stroke: 69 x 53mm

5) Rated power and rotate speed: 10.2kW / 8,500rpm

6) Max. Torque and rotate speed: 13N.M / 7,500rpm

7) Compressing ratio: 9.2:1

8) Chain driven with reverse, with gearbox

9) Starting system: electric

10) Brake system (front/rear): drum/disk

11) Fuel tank: 7.5L

12) Steering angel: 30 degrees

13) Ignition: CDI

14) Tire (front/rear): 23 x 7 - 10/22 x 10 - 10

15) Dimensions: 1,680 x 1,130 x 1,170mm

N.W.: 165kg; G.W.: 188kg

Conveyance:

Qty/20' FCL: 26pcs

Qty/40' FCL: 52pcs
