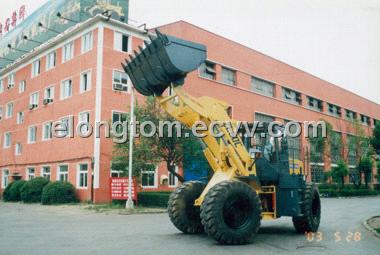

Wheel Loader I(ZL50C/ZL50F)

Detailed Product Description

Item	ZL50G/F	ZL50C
Rated shovel volume m3	3.0	2.9
Rated load t	5	5
Operational weight t	17	17
Shovel auto go flat	YES	YES
Max. shovel force KN	192	150
Max. pulling force	150	120
Max. climbing angles	25°	25°
Shovel ascent time s	5.6	6.2
Shovel descent time s	3.1	3.6
Shovel front tilting time s	1.2	1.3
Engine
Model	WD615-G3-28	WD615-G3-28,6130BG27
Rated power/rpm	162KW/2200	162KW/2200
Type	6-cylinder vertical water cooling	6-cylinder vertical water cooling
Conveyor system
Distance adjustor	Single step,four components	Single step,four components
Gearbox	Planet-type power gearing	Planet-type power gearing
Gears	Forward 2 Backward 1	Forward 2 Backward 1
Max. speed	35	35
Tyre	23.5-25	23.5-25
Turning system
Type	Full hydraulic flow amplifier/concentric-axis amplification	Full hydraulic reverse device
Turning angles	38°	35°
Min. turning radius mm	6214	6200
Hydraulic system working pressure	20(先导操纵)	16
Braking system	USA MICO Imported
Running brake	Full hydraulic clamp plate/Pneumatic	Pneumatic clamp plate
Parking brake	Oil-off control hoof	Air -off control hoof
Emergency brake	Air -off control hoof	Air -off control hoof
Voltage	24V	24V
