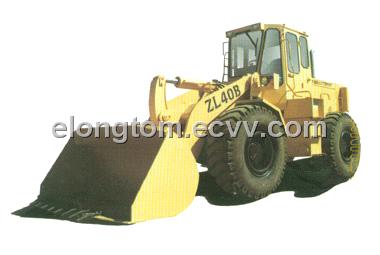

Wheel Loader

Detailed Product Description

1. Single column, water-cooling, natural air-sucking diesel engine, super functions, powerful engine, low exhaust, less noise, higher reliability.

2. Planet-type hydraulic gearbox, stepless speed regulation, single-pole controlled, convenient, flexible.

3. Good-functioned driving bridge is adopted, high loading capacity, anti-impact.

4. Loaders with Z-shaped reverse mechanism , greater shoving capability, better frigidity, shovel can automatically go flat.

5. There are many tools attached on the loaders, shovels to choose from, suitable for many field works.

Item	ZL40B	ZL30B	ZL30G
Rated shovel volume m3	2.2	1.7	1.7
Rated load t	4	3	3
Operational weight t	13.5	10	10.2
Shovel auto go flat	YES	YES	YES
Max. Shovel force KN	107.8	88	103
Max. Pulling force	105	80	90
Max. Climbing angles	25°	25°	25°
Shovel ascent time s	6.5	6	5
Shovel descent time s	3.5	3.5	3.34
Shovel front tilting time s	1.3	1.3	1.54
Engine
Model	T6130G1B	6102BG	6110/125G5-14
Rated power/rpm	125KW/2200	80.9KW/2200	88KW/2200
Type	6-cylinder vertical water cooling	6-cylinder vertical water cooling	6-cylinder vertical water cooling
Conveyor system
Distance adjustor	Single step,four components	Single step,three components	Single step,three components
Gearbox	Planet-type power gearing	Gearing	Fixed axis electrical gearing
Gears	Forward 2 Backward 1	Forward 4 Backward 2	Forward 3 Backward 3
Max. Speed	35	35	34.5
Tyre	20.5-25	17.5-25	17.5-25
Turning system
Type	Full hydraulic reverse device	Full hydraulic reverse device	Priority unloading order for the Load censor reverse device
Turning angles	35°	35°	35°
Min. Turning radius mm	5650	5400	5650
Hydraulic system working pressure	16	16	16
Braking system
Running brake	Pneumatic clamp plate	Pneumatic clamp plate	Pneumatic Full hydraulic clamp plate
Parking brake	Air-off control hoof	Hoof	Air -off control clamp
Emergency brake	Air -off control hoof	Hoof	Mechanism
Voltage	24V	24V	24V
