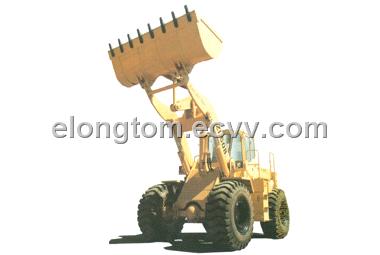

Loader

Detailed Product Description

1) Single column, water-cooling, natural air-sucking diesel engine, super functions, powerful engine, low exhaust, less noise, higher reliability.

2) Planet-type hydraulic gearbox, stepless speed regulation, single-pole c)ntrolled, convenient, flexible.

3) Good-functioned driving bridge is adopted, high loading capacity, anti-impact.

4) Loaders with Z-shaped reverse mechanism , greater shoving capability, better frigidity, shovel can automatically go flat.

5) There are many tools attached on the loaders, shovels to choose from, suitable for many field works

Item	ZL50E	ZL50B
Rated shovel volume m3	2. 9	2. 9
Rated load t	5	5
Operational weight t	17	17
Shovel auto go flat	YES	YES
Max. Shovel force KN	150	150
Max. Pulling force	120	120
Max. Climbing angles	25°	25°
Shovel ascent time s	5. 9	6. 2
Shovel descent time s	3. 3	3. 6
Shovel front tilting time s	1. 2	1. 3
Engine
Model	WD615-G3-28	WD615-G3-28, 6130BG27
Rated power/rpm	162KW/2200	162KW/2200
Type	6-cylinder vertical water cooling	6-cylinder vertical water cooling
Conveyor system
Distance adjustor	Single step, four components	Single step, four components
Gearbox	Planet-type power gearing	Planet-type power gearing
Gears	Forward 2 Backward 1	Forward 2 Backward 1
Max. Speed	35	35
Tyre	23. 5-25	23. 5-25
Turning system
Type	Concentric- axis amplification	Full hydraulic reverse device
Turning angles	35°	35°
Min. Turning radius mm	6200	6200
Hydraulic system working pressure	16	16
Braking system	USA MICO Imported
Running brake	Pneumatic clamp plate	Pneumatic clamp plate
Parking brake	Oil-off control hoof	Air -off control hoof
Emergency brake	Air -off control hoof	Air -off control hoof
Voltage	24V	24V
