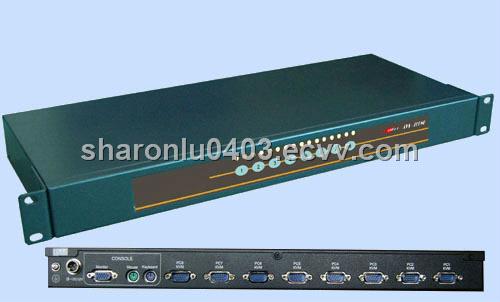

KVM switch

KVM USB switches with 4/8/16 ports, cascadeable to allow access to up to 256 computers or servers, switching computers via OSD, push buttons and hot-keys

Key Features:

Model number: KLS-04-USB/KLS-08-USB/KLS-16-USB

Computer port: 4(KLS-04-USB)/8 (KLS-08-USB) and 16 (KLS-16-USB)

Console port: 1

Daisy chain port: 1

PC side connector: D-Sub 15(VGA), USB(keyboard), USB(mouse)

KVM side connector: SPHD-15

PC port select method: Hot-key, push button and OSD menu

Computer port LED: Online indication and power-on indication for each computer port

OSD menu: Yes

Auto scan interval: 1 to 255 seconds

Keyboard emulation: USB

Mouse emulation: USB

Monitor resolution: 1, 920 x 1, 440/200MHz

Support DDC2B

Compatible with DOS, Win95/98/ME/2000/XP, Win3. X, Win NT, Netware, Unix, Linux, Mac OS 8.6/9/10, SUN Solaris 8/9

Hot pluggable

Keyboard status restored when switching PC and buzzer sound for switching PC confirmation

Support eight characters password protection, two-level password protection and easy searching of a PC by its name

Maximum connected computers: 256

Housing: Metal 19-inch 1U (rack mount unit)

Power supply: DC6~9V, 500mA

Operating temperature: 0 to 55o C/ Relative humidity: 5%~85%

Storage temperature: -20o C to 60o C/ Relative humidity: 5%~95%

Size: 438 x 180 x 44mm (L x W x H)

Weight: 2.65 kgs(4-port); 2.73 kgs(8-port); 2.96 kgs(16-port)
