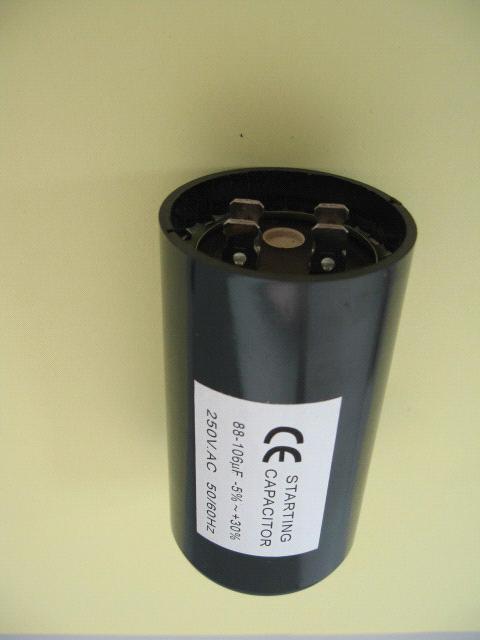

USA Type Motor Start Capacitor

It applies to A.C.single phase motor,with frequency 50/60Hz,rated voltage 110-330VAC. lt can help motors gain high torque with low starting current and make motorstart nomally.lt can also

start tore frigerators and compressors of air conditioner, etc.

Technical Specifications
Working Temperature Range  -25-55°C
Rated Voltage Range：110-330VAC
Rated Capacitance Range：21MF- 1536MF
Dissipation Factor：Tan ≤ 0.01 (50 Hz)
Rated Tolerance of capacitance：0-20%
Without Voltage Between Terminal：Apply 1.25 times working voltage, for 2 seconds,with out break down or explosion
Withstand Voltage Between Terminal and case：2000Vac ,for 10 seconds,without break down or explosion
