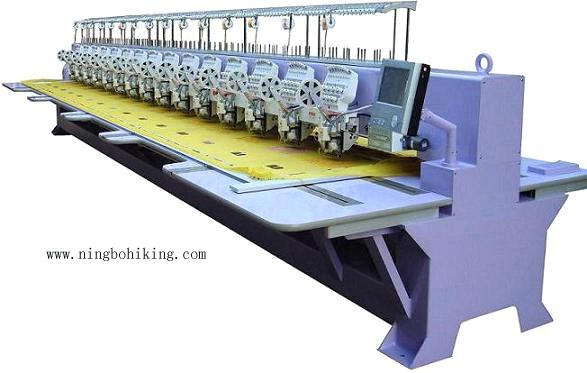

Sequin embroidery machine

Certification: ISO9001, CE

Specifications:
1) 9-needle, 15-head
2) Embroider area: 450 x 1000mm
3) With standard configure and optional configure
4) Speed: Normal 850rpm

                 Sequin 600-750rpm
5) Power input: 220V / 380V, 50Hz / 60Hz
6) Power consumption: 1kW
7) Noise: <80dB
8) Configuration: DAHAO A88computer 10" LCD, Servo motor Panasonic (made in Japan),
3-phase stepper motor, hook (made in Japan), bobbin case (made in Japan),
encoder (made in Japan)



Normal+Sequin Embroidery series

Function characteristic

1.     Different shapes sequin can be embroideried and easily conversed from 3mm to 9mm sequin size.

2.     The embroidering speed of sequin can reach 750r/m with stable operation.

3.     Originated slice and slice-stopping structure to make the replacement of sequin more convenient and the maintenance more simply.

4.     Pneumatic drive is adopted to ensure reliable operation and low noise.

5.     Single-head independent control to realize the function of single-head slice supplement embroidering.
