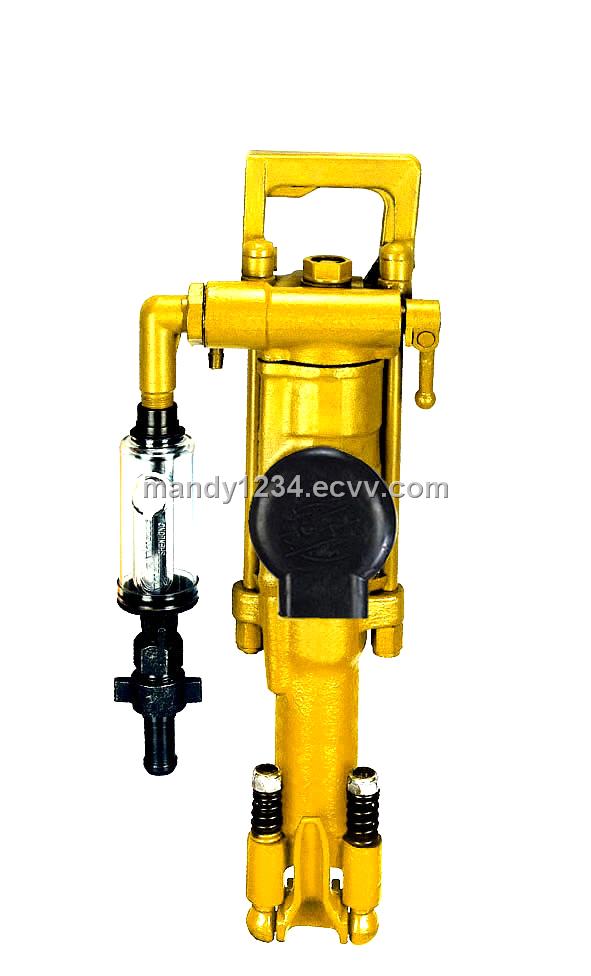

YT23D Air Leg Rock Drill

Detailed Product Description

Weight: 24kg
Length: 668mm
Air pressure: 0.35-0.63MPa
Cylinder dia: 70mm
Piston stroke: 70mm
Impact frequencey(at0.4MPa): 28HZ
Impact energy(at0.4MPa): 45J
Air consumption(at0.4MPa): 38 L/S
Noise: 112dB(A)
Water pressure: 0.2-0.3MPa
Air pipe (inner dia): 19 mm
Water pipe (inner dia): 13 mm
Bore dia: 34-42mm
Bore depth: 5m

Shank dimensions(hex*length): 22*08 +1 mm
Model FT200A Oil reservior
Weight: 2kg
Oil capacity: 0.2L
Air leg FT160A FT160B
Weight: 17Kg 16 kg
Length:
Max 3006mm 2526mm
Min 1668mm 1428mm
Propulsion stroke: 1338 mm 1098 mm
Axis thrust(max): 2000N 2000N

Place of Origin:	Fujian in China
Model No:	YT23D
Brand Name:	DSL
Payment Terms:	L/C,T/T(Bank Transfer),D/P,
Minimum Order:	Piece/Pieces 20
Supply Ability:	Piece/Pieces\|2000\|Month
Package:	wooden case,carton case
