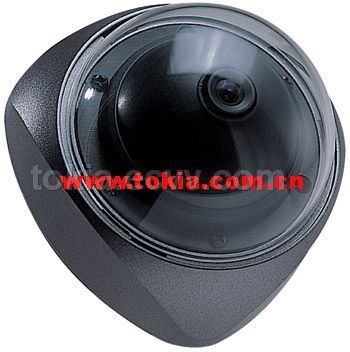

color dome cameras

Model


TK-CC6355         TK-CC6358

Image Sensor
1/3" CCD monochrome

Picture Elements
EIA 537H x 505V CCIR 537H x 597V

Horizontal Frequency
EIA/NTSC 15.734kHz CCIR/PAL 15.625Khz

Vertical Frequency
EIA/NTSC 60Hz CCIR/PAL 50Hz

Clock Frequency
EIA/NTSC 19.0699Mhz CCIR/PAL 18.9375 Mhz

Scanning System
2:1 Interlace

Horizontal resolution
420TVL         480TVL

Power Supply
12V DC@ 80ma

Illumination
0.05Lux F=2.0       0.5LUX/F2.0

Signal to Noise ration
45dB

Electronic Shutter Speed
EIA1/60~1/100,000 sec; CCIR1/50~100,000sec

Lens
3.6mm / F=2.0

Video Output
1V pp 75 Ohms

Audio Output
N/A

Gamma
0.45

White Balance
N/A

Backlight Compensation
N/A

Gain Control
Auto

Auto Iris
N/A

Weight
168g

Dimensions
?02 x 72mm

Storage Temperature
-30C to +60C

Operating Temperatures
-10癈 to +45癈

Place of Origin:	guangdong shenzhen in China
Model No:	TK-CC6355/6358
Brand Name:	TOKIA
