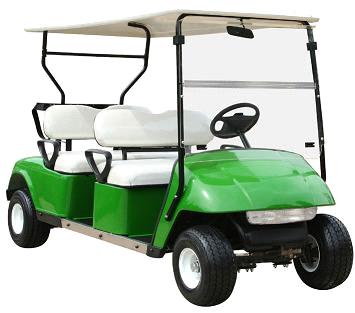

GOLF CART

Detailed Product Description

Model No : RYD399A

Place of Origin: China

Drive system:

1)Motor: 3KW 48V DC motor

2)Controller: 300A/48V full electric speed controller

3)Charger: 20A/48V full automatic high frequency charger

4)Battery: TrojanT875, 8V170Ah x 6

5)DC/DC converter: 48V/12V 300W output for all 12V accessories

6)Suspension/front: hydraulic shock absorb

7)Suspension/rear: armor plate strut suspension and hydraulic shock absorb

8)Braking system: rear wheels mechanic drum braking system; independent parking brake.

Performance:

1)Max. speed: 25km/h

2)Grade ability: 20%

3)Max running distance for a full charging: 80km

Turning radius: 4m

Dimensions:

1)L*W*H: 3070*1210*1710mm

2)Wheelbase: 2400mm

3)Ground Clearance(mm): 127mm

4)Dry weight: 500kgs

5)Accessories(optional): Rain cover/Back mirror/Left/right-turning light/headlight/horn/brake light.

6)Quantity per container: 9pcs/40HQ

7) Optional color: red/white/green/yellow/blue
