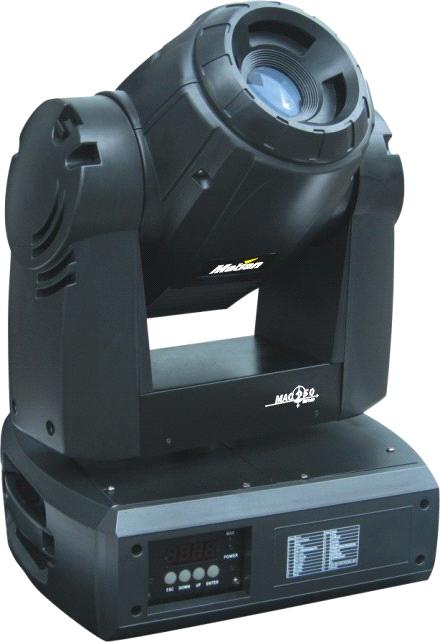

moving head

Detailed Product Description

VOLTAGES:
　　 AC100-120V/60Hz(America Type)
AC 220-250V/50Hz(Europe Type)
POWER CONSUMPTION:
　　 300Watt
LAMP: (order)
　　 PHILIPS MSD 250W discharge lamp
　　 Color Temperature: 4000oK
　　 Socket: GY 9.5
　　 Manufacturers Rated Lamp Life: 500 Hours
COLORS:
　　wheel with 7 fixed Diachronic colors plus white
　　 With variable speed bi-directional rainbow effect
GOBOS:　
　　 Rotating gobo wheel
　　 7 interchangeable gobos + white, bi-directionally rotating at variable speeds.
　　　one glass gobos
PRISM:　
　　 3 facet, bi-directional
　　 rotation at variable speeds
FOCUS:
　　 Electric linear focus:18-32o
SHUTTER:
　　 Double shutter blades, 0-100% linearly adjustable
DIMMER:
　　 Electric linear dimming
HEAD MOVEMENT:　
　　 Pan 450o, Tilt 270o .Pan & Tilt speed adjustable. Pan & Tilt rotation resolution: 16bit
CONTROL:
　　 DMX512, 14 channels
DIMENSIONS: L400*W400*H550MM
WEIGHT: 28Kg CH1 strobe/open/closed beam
CH2 Dimmer
CH3 Pan
CH4 Tilt
CH5 Color wheel
CH6 Rotate gobo wheel
CH7 Gobo rotation
CH8 Focus
CH9 Prism
CH10 Prism rotation
CH11 Pan fine
CH12 Tilt fine
CH13 Pan/Tilt speed
CH14 Reset
