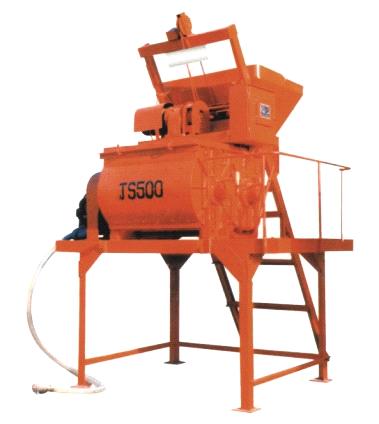

JS series mixer

 JS series mixer is an updated multifunctional machine applicable for mixing plastic concrete, dry concrete or lightweight aggregate concrete and different mortars. It has the advantages such as simple structure, high mixing quality, high efficiency, low energy consumption, low noise, long service life and easy maintenance. Motorized discharge port is applied to be matched with dump car. So it is ideal machine for construction site and prefabrication factory.



Type		JS500
Output capacity		500L
Input capacity		800L
Theoretical productivity		≥25 m3/h
Size of aggregates（scree/rubble）		80/60㎜
Mixing blade	Rotating speed	31r/min
	Quality	2×7
Mixer blade	Type	Y180M-4
	Power	18.5KW
Hoister motor	Type	YEZ132S-4-B-5
	Power	5.5KW
Pump motor	Type	BL12-16-1.1
	Power	1.1KW
Outside size（length×width×height）	Conveying state	3050×2300×2680mm
	Working state	4461×3050×5225mm
Overall weight		4000㎏
