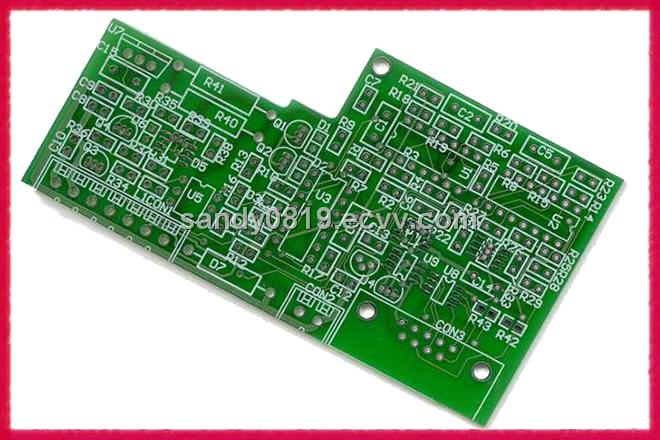

We can deal with 1-12 layer pcb printed circuit boards. We also can provide electronic components and SMT procedure. Please contact us for more details about pcba and pcb. We can deal with CAM350,PCAD2002,PROTEL,Power PCB and PADS. The parameter of pcb we can provide as follows：
1) pcb material: FR-4, FR-1, CEM-1, CEM-3, FR-4 Halogen Free
2) pcb layer: 1-12
3) pcb board thickness: 0.4mm-3.2mm
4) pcb copper thickness: 0.5oz, 1.0oz, 2oz, 3oz,
5) pcb min.drilled hole size: 0.2mm
6) pcb min.track width/space: 4/4mil(0.1/0.1mm)
7) pcb surface finish: HASL, Lead free HASL, OSP, Gold-plating, Chemical silver, Chemical gold(ENIG), Chemical tin, Carbon ink,
8) pcb solder mask color: green, yellow, black, white, red, blue
9) pcb profiling: Punching, Routing, V-cut, Golden finger, Beveling
10) pcb V-cut angle: 20°，25°，30°，45°，
11) pcb Beveling angle: 20°，25°，30°，45°
12) pcb Max working panel: 24*20 (610mm*508mm)
13) pcb E-test voltage: 50-300V
14) pcb Certificate：UL, ISO9001, ISO14001, ISO/TS 16949, RoHS
15) pcb Impedance control:
Microstrip impedance: 50-60Ω，Tolerance: ±10%
Differential Impedance: 90-120Ω, Tolerance: ±10%
16) pcb Quality standard: IPC-A-600F
| Place of Origin: | Zhejiang in China |
