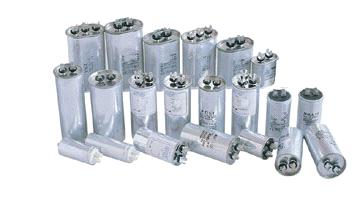

Electrlytic Capacitor-Aluminium (CBB65)

*Features:

The capacitor takes heavy-edge metallized Al/Zn PP film or web-like safety film as dielectric. The elements are tight winded by high-velocity winders and canned in aluminum cases. Refined castor oil is adopted as impregnation agent treated in vacuum and high temperature condition. Those make a more reliable performance and longer lifespan for a capacitor. Meanwhile the second generation of mechanical anti-explosion design is selected as blast-proof secure measure for our capacitors. The reliability is more affirmatively enhanced.

*Applications:

Broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for family air conditioners and high power illuminators for the sake of power factor compensation.

*Technical Specifications:

Standard:IEC 60252-1:2001

Technical features:Climate type:40/70/21

Capacitance tolerance±5%I.R:>=3000S

Dielectric dissipation factor:tg<=0.002 (50Hz~100Hz)

Application requirements:Altitude:<=2000m

Residual voltage while loading: less than 10% of rated voltage.

Allowed maximum voltage: less than 1.1 times of rated voltage

Permissible maximum current: less than 1.3 times of rated current.
