Detailed Product Description

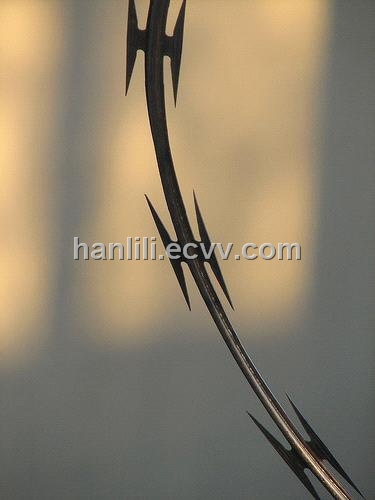

We design and produce razor barbed wire, concertina coil and razor wire coil for fencing and security application.

Material applied for razor barbed wire and barbed tape wire: Galvanized razor wire or stainless steel razor coils.

Razor barbed wire can be installed in the form of barbed tape wire or concertina coil to walls or fencings.
Razor size and coil size are listed as follows.

Reference Number	Blade Style	Thickness	Wire Dia	Barb Length	Barb Width	Barb spacing
BTO-12		0.5±0.05	2.5±0.1	12±1	13±1	26±1
BTO-18		0.5±0.05	2.5±0.1	18±1	15±1	33±1
BTO-22		0.5±0.05	2.5±0.1	22±1	15±1	34±1
CBT-65		0.6±0.05	2.5±0.1	65±2	21±1	100±2

Specification of Razor Barbed Wire:

Outside Diameter	No. of Loops	Standard Length per Coil	Type	Notes
450mm	33	8M	CBT-65	Single coil
500mm	41	10M	CBT-65	Single coil
700mm	41	10M	CBT-65	Single coil
960mm	53	13M	CBT-65	Single coil
500mm	102	16M	BTO-10.15.22	Cross type
600mm	86	14M	BTO-10.15.22	Cross type
700mm	72	12M	BTO-10.15.22	Cross type
800mm	64	10M	BTO-10.15.22	Cross type
960mm	52	9M	BTO-10.15.22	Cross type

Place of Origin:	Hebei in China
Brand Name:	Huihe
FOB Price:	1100-1200 USD Tianjin
Payment Terms:	L/C,T/T(Bank Transfer),PayPal,
Others Payment Terms:	cash in advance
Minimum Order:	Meter 6000
Supply Ability:	Square Meter\|999999999999999999999999999999\|Month
Delivery Time:	prompt
