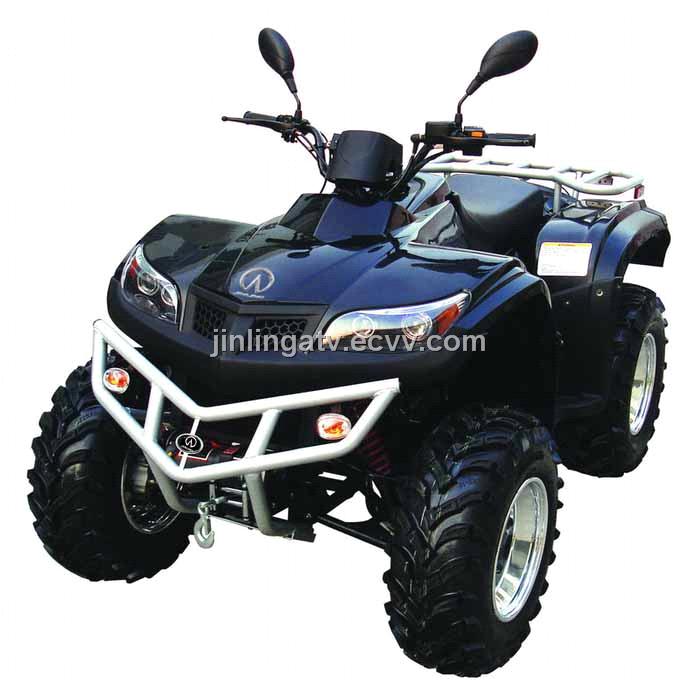

Qauds (JLA-821)

Detailed Product Description

250cc atv,quad1. engine type :196cc/248cc,4 storke

2. max torque : 13.5Nm/5500rpm, 17.5Nm/5000rpm

3. max power :10kw/7500rpm,11kw/7500rpm

4. ignition type :CDI

5. transmission :manual clutch,4-speed,reverse gear,chain/shaft,drive

6.Brake (Front/Rear):Drum/Drum for shaft),Disc(for chain)

7. starting system :Electric start

8. battery spec :12V,9AH

9. front suspension details :double A x swing arm

10. rear suspension details :mono shock swing arm

11. front tire spec : 23 x 7-10 rear tires spec : 22 x 10-10

12. vehicle dimensions :208x124x113cm

13. wheel base :1160mm

14. seat height from ground :90cm

15. ground clearance :155mm

16. load capacity :165kg

17 fuel tank capacity :11L

18. gross weight in carton :240kg

19. net weight :220kg

20. packing size:194x109x86cm

Conveyance:

Qty/20' GP: 12 units

Qty/40' GP: 24 units
