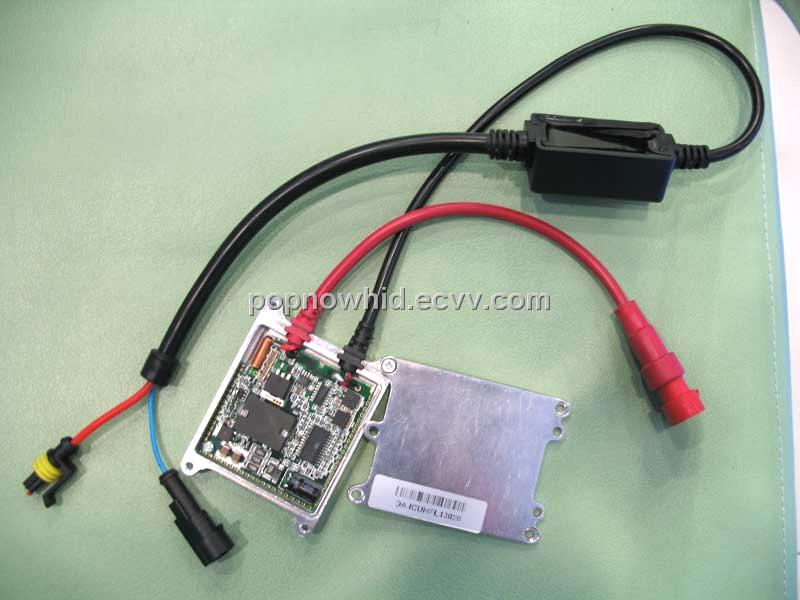

Popnow Hid Slim Ballast

Hid Slim Ballast description:

Input Voltage Range:DC9V～16V
Starting Voltage:DC12.8V
Input Current:3.2A
Max. Inrush Current:15A
Output Power:32W-38W
Output voltage:AC85V±15V
Output Frequency:260Hz～280Hz
Efficiency:≥84%
using lamp:35W HID LAMP
Ignition pulse:Typical peak Voltage 23kV    Typ. 1s
Cooling method:Natural cooling
Input Protections:
 Under voltage protection at 6V±1V
 Over voltage protection at 27.5V±1V
 Input connection-reverse protection
Output Protections:
 Short circuit protection between two outputs
 Open circuit protection between two outputs

Bulb discription:
1) HID bulbs types: D2R, D2S, D2C H1, H3, H4, H4 (H/L), H4(Bixeno), H7, H8, H9, H11, H13, 9004, 9004(H/L), 9005, 9006, 9007, 9007(H/L)
2) Bulbs Color temperature: 3,000K - 12,000K or above

Color bulb:sky blue(TB),dark blue(ZB),green blue(QB),pink(HR),gold(HH),green(HJ),green yellow(HF),white purple(BP)
