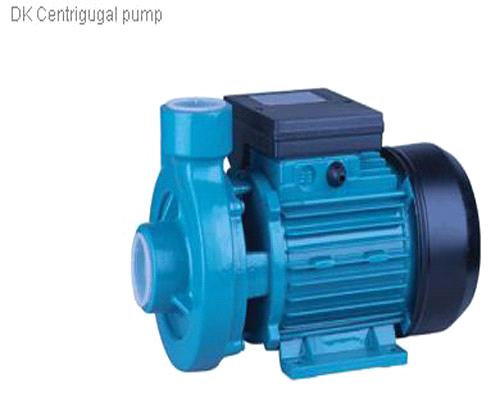

centrifugal pump

Detailed Product Description

Operating conditions:
* Max. working pressure: 2.0 bars
* Liquid temperature up to 60°C
* Ambient temperature up to 40°C
* Total suction lift up to 9M
* Continuous duty

Motor:
* Two-pole induction motor (2,850rpm)
* Insulation class: B
* Protection: IP44

Materials:
* Pump body: cast iron
* Motor support: cast iron
* Motor housing: aluminum
* Impeller: brass
* Shaft with rotor: superior steel
* Mechanical seal: carbon / ceramic

* Single phase 220 - 240V, 50Hz
* Single phase 110 - 127V, 60Hz as per requests
* Single / three-phase 220V, 60Hz as per requests
