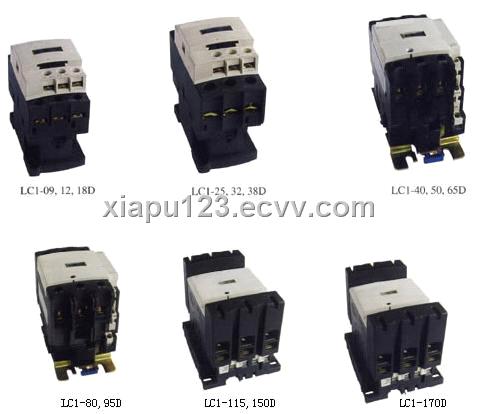

LC1-D (NEW) AC Contactor

LC1D series AC contactors are suitable for frequency 50/60HZ, rated insulation voltage up to 1000V,

rated operation current 9~330A under AC3 duty. It is mainly used for making/ breaking electric circuits at a long distance & for frequent starting/ stopping & controlling AC motors. It is used in combination with thermal relay to compose a magnetic motor starter. The products according with the standards such as IEC60947-4-1 & GB14048.4.

Specifications Rated operational current le max AC-3 (Ue≤440V) 9A 12A 18A 25A 32A 38A le AC-1(0≤60℃) 25A   32A 40A 50A   Rated operational voltage 690V Number of poles 3 3 4 3 3 4 3   Rated operational power in AC-3 220/240V 2.2KW 3KW 4KW 5.5KW 7.5KW 9KW 380/400V 4KW 5.5KW 7.5KW 11KW 15KW 18.5KW 415/440V 4KW 5.5KW 7.5KW 11KW 15KW 18.5KW 500V 5.5KW 7.5KW 10KW 15KW 18.5KW 18.5KW 660/690V 5.5KW 7.5KW 10KW 15KW 18.5KW 18.5KW 1000V - - - - - - Auxiliary contacts range comprising up to 4 N/O instantaneous, upto 1N/O +1N/C time delay and up to 2N/O or N/C protected contacts and 2 screen continuity terminals Compatible manual or auto thermal overload relays class 10A 0.10...10A 0.10...13A 0.10...18A 0.10...32A 0.10...38A 0.10...38A class 20A 2.5...10A 2.5...13A 2.5...18A 2.5...32A -   Suppressor modules (d.c.and low consumption contactors have built-in suppression limiting diode as standard) Varistor ● ● ● ● ● ● ● ● Diode - - ● - - ● - - RC circuit ● ● ● ● ● ● ● ● Bidirectional peak ● ● ● ● ● ● ● ● Interfaces Relay ● ● ● ● ● ● ● ● Relay+override function ● ● ● ● ● ● ● ● Soild state ● ● ● ● ● ● ● ● Contactor type references ~or--3P LC1-D09 LC1-D12 LCS-1-D18 LC1-D25 LC1-D32 LC1-D38 ~4-P - LC1-D12 - LC1-D25 - - --4P - LC1-D12 - LC1-D25 - - Reversing contactor type references ~3P LC1-D09 LC1-D12 LCS-1-D18 LC1-D25 LC1-D32 LC1-D38 --3P LC1-09 LC1-D12 LCS-1-D18 LC1-D25 LC1-D32 LC1-D38 ~4P - LC1-D12 - LC1-D25 - - --4P - LC1-D12 - LC1-D25 - -   Rated operational current le max AC-3 (Ue≤440V) 40A 50A 65A 80A 95A 115A 150A le AC-1(0≤60℃) 60A 80A   125A   200A   Rated operational voltage 1000V on ~ supply, 690V on supply Number of poles 3 4 3 3 4 3 4 3 3 4 3 Rated operational power in AC-3 220/240V 11KW 15KW 18.5KW 22KW 25KW 30KW 40KW 380/400V 18.5KW 22KW 30KW 37KW 45KW 55KW 75KW 415/440V 22KW 25/30KW 37KW 45KW 45KW 59KW 80KW 500V 22KW 30KW 37KW 55KW 55KW 75KW 90KW 660/690V 30KW 33KW 37KW 45KW 45KW 80KW 100KW 1000V 22KW 30KW 37KW 45KW 45KW 75KW 90KW Auxiliary contacts range comprising up to 4 N/O instantaneous, upto 1N/O +1N/C time delay and up to 2N/O or N/C protected contacts and 2 screen continuity terminals Compatible manual or auto thermal overload relays class 10A 17...50A 17...70A 17...50A 17...80A 17...104A 60...150A 607...150A class 20A 17...40A 17...65A 17...70A 17...80A   60...150A 60...150A Suppressor modules (d.c.and low consumption contactors have built-in suppression limiting diode as standard) Varistor ● ●   ● ● ● ● ● - Diode ● ●   ● ● ● ● - - RC circuit ● ●   ● ● ● ● ● ● Bidirectional peak ● ●   ● ● ● ● - - Interfaces Relay ● ● ● ● ● ● ● ● ● Relay+override function ● ● ● ● ● ● ● ● ● Soild state ● ● ● ● ● ● ● ● - Contactor type references ~or--3P LC1-D40 LC1-D50 LC1-D65 LC1-D80 LC1-D95 CL1-D115 LC1-D3150 ~4-P LC1-D40 - LC1-D65 LC1-D80 - CL1-D115 - --4P LC1-D40 - LC1-D65 LC1-D80 - CL1-D115 - Reversing contactor type references ~3P LC1-D40 LC1-D50 LC1-D65 LC1-D80 LC1-D95 CL1-D115 LC1-D150 --3P - - - Place of Origin: Zhejiang in China Model No: LC1-D Brand Name: Good Payment Terms: T/T(Bank Transfer),Western Union, Minimum Order: Piece/Pieces 1000 Supply Ability: Piece/Pieces|50000|Month Package: export packing Related Products from Other Manufactures Related Manufacturers Open Group Co., Ltd. Hellobuyer Intel Co., Ltd. Wfstar International (HK) Limited Gold Link International Enterprise Ltd. Hong Kong Long Yi Trade Co., Ltd. Nanfeng Electrical Co., Ltd. Fashion International Trade Co., Ltd. Chinakeel Electronic Trade Co., Ltd. Hengtai International Trade Co., Ltd ECVV Co., Ltd Test1199 AC Contactor Contactor DC Contactor Contactor Relay Electrical Contactor LS Contactor GMC Contactor Auxiliary Contactor Magnetic Contactor GMC AC Contactor DC Contactor Relay Vacuum Contactor Magnetic AC Contactor Contactor Relays Solid State Contactor Relay Solid State Contactor Relays Air Conditioner Contactor Industrial AC Contactor 24V AC Contactor 24V Contactor AC Compressor Contactor AC Contactor Coil AC Contactor Coils AC Contactor Relay Quick Links: Wholesale Contactor Email this page Bookmark this page B2b Marketplace - Premium Services - Products Directory - Manufacturers Directory - Trade Shows - Hot Catalogs - Community - Site Map About Us - Ecvv China - Export to China - Terms & Conditions - Privacy Policy - 24-Hour Trends - International Buyers - Help - Contact Us Index: China Suppliers, Suppliers Products, Suppliers Catalogs, Popular Products, International Trade Leads China Wholesale Copyright © 2003-2010 Ecvv.com Shenzhen China Corporation and its licensors. All rights reserved. Popular Products: 0-9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z Send Message Click here to enter your message. Send Message Enter your message here Your message should be between 20-3000 characters Send Message
