paver machine

paver machine

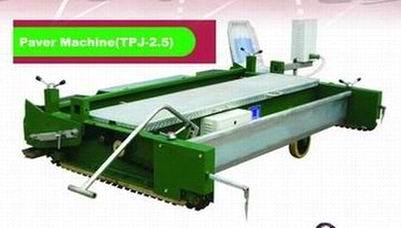

TPJ-2.5 paver machine is the paving machine of synthetic running track with high technical contained manufactured by our company.The machine is assembled the advanced technology of Simens frequency conversion sepless speed regulation and the hydraulic gear,enhance the automaticity of paving,Its performance satisfied the sports fields’ construction requirement and achieve the quality and technical specification,its highly effective,low consumption,high quality and easy operation and so many good characteristics is approved by dometic and foreigh customers.



Main technical data

Paving Width:2500mm

Moving Speed:0.8-6m/min

Paving Capability:500m2/h

Power:8kw

Adjusted data of hydraulic pressure system:8Mpa

Adjusted temperature for electric board:90 degree.

Machine Weight:900kg

Appearance measurment:3000*18008720mm
