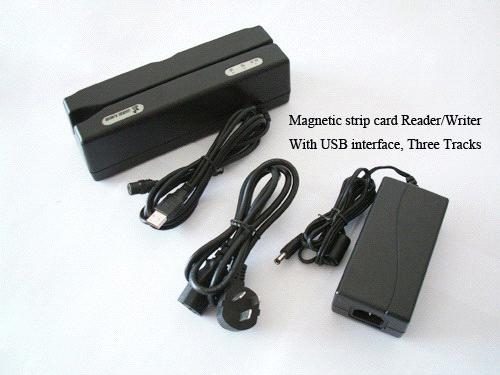

Manual Swipe Magnetic/IC Card Reader/Writer Terminal
FEATURES：
Support ISO, IBM, DIN, ANSI etc
Smart reading for card / bankbook with different magnetic record format
Compatible with magnetic card, IC card and SAM card
Excellent adaptation, good reliability, long-life magnetic head
RS232/USB
Hi co/low co
APPLICATION：
Banking system
Tax Service System
Securities System
Member Management System etc
SPECIFICATIONS：
Card Standard: ISO 7811 / 2 ISO 7816
Track Position: ISO 1 (IATA) ISO 2 (ABA) ISO 3 (MINTS)
Recording Density: 210 BPI 75 BPI 210 BPI
Recording Capacity: 79Characters (7bits) 40Characters(5bits) 107Characters (5bits)
Power Supply: +24V DC ±5%
Power consumption: 200mA ±15%(read) 280mA ±15%(write)
Head Function: Read only 1.5mm, Writer 3 mm
Card Thickness: Plastic 0.76 ± 0.08mm
Operation Speed: 10 ~ 150cm/sec(read) 10 ~ 100cm/sec(write)
Error Rate: Lass than 0.5% (JSE Test card)
Interface: RS232C, USB
Operation Locus: Indoors only
Lifetime of Header: 500,000 card passes (1 pass : one swipe)
Lifetime of IC: 300,000 card passes
Lifetime of SAM: 600,000 card passes
ENVIRONMENTAL REQUIREMENTS：
Operating temperature and humidity: -5°C ~ 50°C, 20 ~ 90% RH
Conservation temperature and humidity: -20°C ~ 55°C, 5 ~ 95% RH
| Place of Origin: | Zhejiang in China |
| Model No: | HM070802 |
| Brand Name: | Hongmei |
| FOB Price: | 1500-1600 RMB hangzhou city China |
| Payment Terms: | T/T(Bank Transfer),Western Union, |
| Minimum Order: | Ounce 1 |
| Supply Ability: | Bushel/Bushels|100000|Month |
| Package: | carton case |
| Delivery Time: | 2 |
