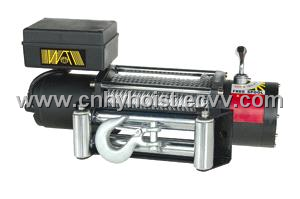

Electric Winch (WT-9000)

Electric Winch (WT-9000)

Prev Product

Contact Now

Detailed Product Description

* Rated line pulling: 9000lbs (4082kgs) Single-line

* Gear Ratio: 265:1

* Gear train: 3-Stage Planetary

* Clutch: Sliding Ring Gear

* Motor: Permanent magnet DC 12V motor with 3.6hp/2.7kw output

* Control: Remote switch, 9.8′( 3m) lead

* Brake: Automatic In-The-Drum

* Overall Dimension: (LxWxH) 22" x 6.3" x 10" (560 x 160 x 254mm)

* Drum size: Diameter 2.5” (63.5mm) Length 8.82” (223mm)

* Fairlead: Included

* able length: 95ft of 21/64” diameter (29m of 8.3mm diameter)

* Mounting Pattern: 10.00 ± 0.015” x 4.50 ± 0.010” (254 x 114.3mm)

Place of Origin:	Zhejiang in China
Model No:	WT-9000
Payment Terms:	L/C,T/T(Bank Transfer),D/P,
Minimum Order:	Piece/Pieces 10
Supply Ability:	Piece/Pieces\|500\|Month
Delivery Time:	30 days
