Glass Sandblasting Machine

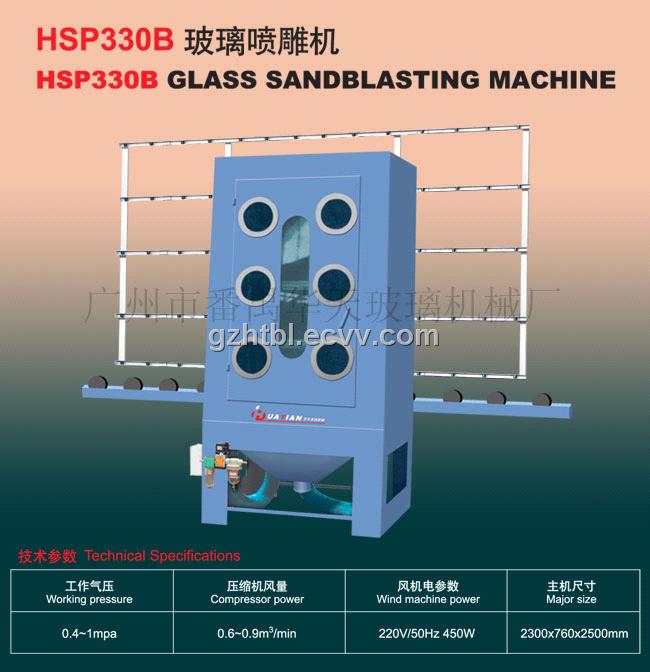

HSP330B (Manual)

This machine is suitable for sandblasting the surface of glass, metal and ceramics etc and different designs and characters. It makes processed articles form stereo designs or become colorful carved craftworks with color and paint. This machine is highly efficient, easy to operate and repair.

Technical Specifications:







HSP1500P (Automatic/Manual)

This machine is equiped with three automatic sandblasting guns, which is controlled by the PLC programmable controller, is capable of automatic continuous sandblasting on glass of various sizes, so ith is suitable for the processing of sandblasted glass in large scale. The spray gun movement and glass delivery are adjusted by stepping motor, which has the advantage of rapid speed, high precision, steady movement. As long as set the parameter of processed glass by the LCD touch-screen, the glass will be automatically putted into the workroom. The machine is also equipped with one manual sandblasting gun, which can be used for sandblasting of single piece.

Technical Specifications:

•  Processing dimensions: MIN: 200×500mm    MAX: 1500×2000mm
• Processing thickness: 3 ~ 25mm
• Spray gun travelling speed: 0.5 ~ 12 m/min
• Sand spraying speed: 10 ~ 15 m2/h
• Working pressure: 0.8Mpa
• Air compressor power: >12KW  (>1.5m3/min）
• Power: 3.6KW
• Size: 6100×2000×2500mm
