HYM Series Glass Straight-Line Circular Edging Machine

Detailed Product Description

This kind of machine is suitable for grinding flat glass straight-line bottom line of different size and thickness(e.g. straight-line pencil edge, OG edge, double OG edge etc). Its speed can be adjusted by stepless regulator at random during processing. Rough grinding, fine grinding and polishing can be completed in one procession. Easy operation, high efficiency.

Technical Specifications:

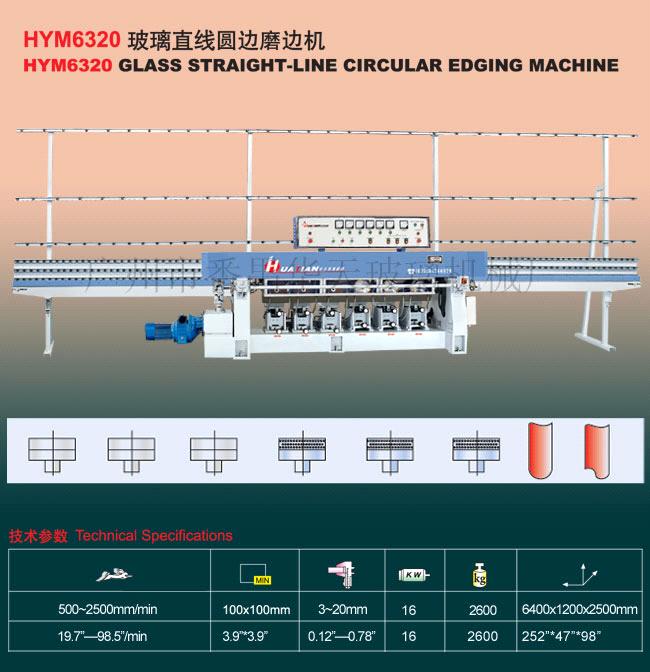

HYM6320
  • The number of grinders: 6
  • Grinding speed: 500 ~ 2500mm/min
  • Maximum beveling width: 35mm
  • Range of bevel angle: 3 ~ 20 degrees
  • Glass thickness: 4 ~ 20mm
  • Size of processed glass: Max: 3000 x 3000mm   Min: 50 x 50mm
  • Power: 17.8KW
  • Weight: 4800 KG
  • Size: 7760 x 1400 x 2450mm


HYM4320
  • The number of grinders: 4
  • Grinding speed:  500 ~ 2500mm/min
  • Glass thickness: 3 ~ 20mm
  • Size of processed glass: Max: 3000 x 3000mm   Min: 100 x 100mm
  • Power: 11.3 KW
  • Weight: 2300 KG
  • Size: 5900 x 1200 x 2500mm


Place of Origin:Guangdong in China
Model No:HYM4320/HYM6320
Brand Name:HuaTian
Payment Terms:T/T(Bank Transfer),
Minimum Order:Set/Sets 1
Package:Packed by plastic film or wooden case.
Delivery Time:20 days
