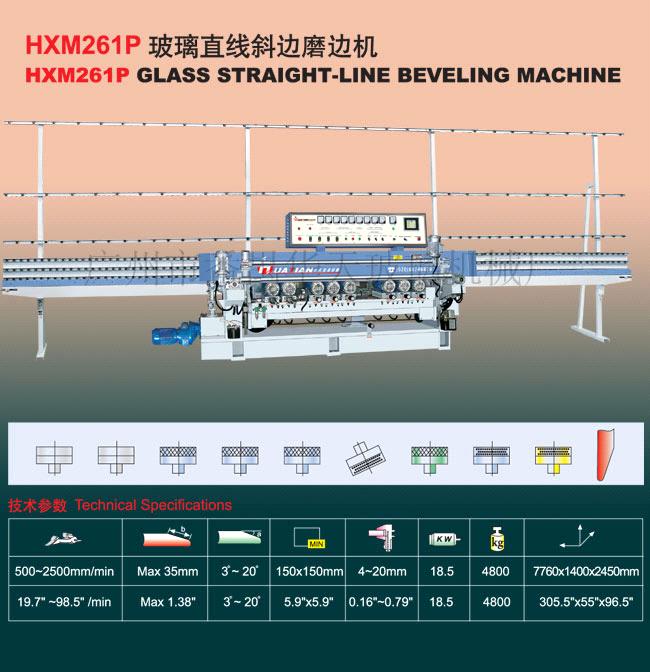

HXM261P Glass Straight-Line Beveling Machine

Detailed Product Description

General descriptions:

1. This machine is designed for processing straight-line bevel edge of glass sheet with different sizes and thickness.

2. The main base is made of cast iron. It’s strong and stable.

3. Processing speed can be adjusted by stepless regulator.

4. Equiped with Programmable Logic Controller (PLC) which has clamping system for fully automatic or manual operation. Display glass processing thickness and length by LCD.

5. Processed with three diamond wheels for rough grinding, one wheel for base modification, three wheels for refine grinding and two wheels for pneumatic polishing. Rough grinding, fine grinding and polishing can be completed in one procession.

6. It specialty adopt beveling wheels which can whole progress and also can lifting integrally. It compare to traditional front beam or back beam's lifting, it has characteristics of more pithiness structure, more stability, higher grinding precision.

Technical Specifications:

1. The number of grinders: 9

2. Grinding speed: 500 ~ 2500mm/min

3. Maximum beveling width: 35mm

4. Range of bevel angle: 3°~ 20°

5. Glass thickness: 4 ~ 20mm

6. Size of processed glass: Max: 3000 x 3000mm Min: 150 x 150mm

7. Power: 18.5KW

8. Weight: 4800 KG

9. Size: 7760 x 1400 x 2450mm

Place of Origin:	Guangdong in China
Model No:	HXM261P
Brand Name:	HuaTian
Payment Terms:	T/T(Bank Transfer),
Minimum Order:	Set/Sets 1
Package:	Packed by plastic film or wooden case.
Delivery Time:	20 days
