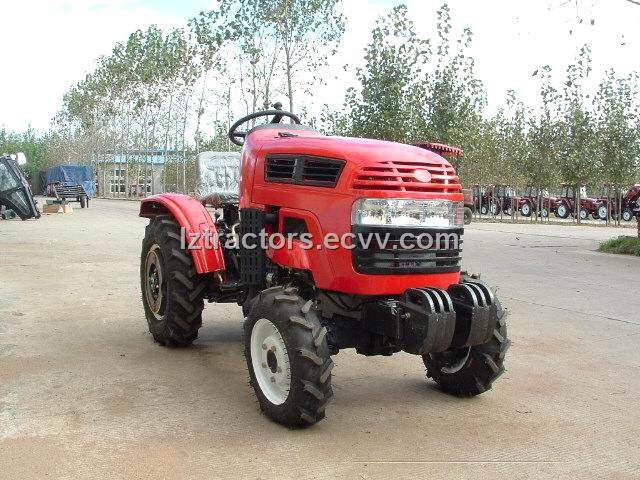

Tractor (NT254)

Next Product

Detailed Product Description

SPECIFICATIONS

Tractor Parameters	Model					NT254	NT284
	Drive Type					4WD
	Overall Dimensions LWH (mm)					265010001350
	Track Width (mm)			Front		780
				Rear		780
	Wheelbase(mm)					1645
	Ground clearance(mm)					295
	Rated Traction Force (N)					5980
	Unladen Mass(Kg)					1030
	Min.Turning Radius(m)					2.80
	Theoretical Speed(km/h)				Forward (creeper)	1.73,3.42,5.71,8.01,15.80,26.40 0.32,0.64,1.06,1.49,2.95,4.92	1.77,3.49,5.83,8.18,16.2,26.9 0.33,0.65,1.08,1.52,3.01,5.03
					Reverse (creeper)	1.37,6.35 0.26,1.18	1.4,6.49 0.26,1.21
Engine	Model					Y385/KM385	Y385
	Type					3-Cylinder Vertical,Water Cooled,4 Stroke Cycle
	Rated Power(kw/hp)					18.4/25	20.5/28
	Rated Speed(rpm)					2350	2400
	Bore*Stroke(mm)					85*90
	Total Displacement(L)					1.532
Drive System	Clutch					Dual Stage (single optional)
	Gear Box					(3+1)*2 or (4+1)x2 (optional)
	Main Drive					One Pair of Spiral Bevel Gearing
	Differential					Bevel Gear
	Differential Lock					Jaw Lock
	Final Transmission					External Gearing,Spur Gear
Traveling Mechanism	Type		Front			5.00-12 or 6.00-16
			Rear			7.5-16 or 9.5-24
	Steering Gear					Full Hydraulic Steering
	Brake					Dry Type
Working Device	Hydraulic System	Lifting Capacity at 610mm Behind Lift Point(N)				4200
		3-Point Suspension				Category: 0
	P.T.O Shaft	Rotating Speed(rpm)				540 or dual speed 540/1000
		Spline Size				6-?35 Rectangular spline
