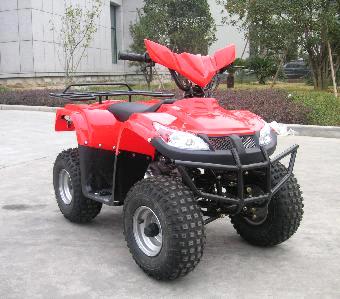

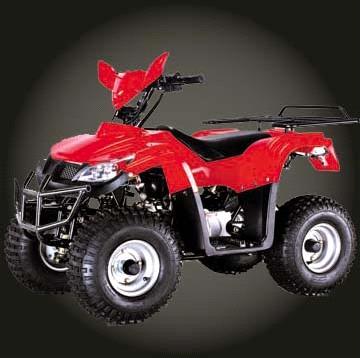

ATV (JLA-04)

* Engine type: 50cc / 70cc / 90cc / 110cc, 4 storke

* Bore and stroke: 39 x 41.4 / 47 x 41.4 / 47 x 49.5 / 52.4 x 49.5

* Compression rating: 8.8:1

* Max torque: 4.2 N.m / 5000 rpm , 4.2 N.m / 5000 rpm, 5.2 N.m / 5000 rpm, 5.5 N .m / 5000 rpm

*Maxpower: 3.0 kw / 8500 rpm, 3.0 kw / 7500 rpm, 3.3 kw / 7500 rpm, 3.6 kw / 7500 rpm

* Ignition type: CDI

* Transmission: Automatic, chain / 4-speed, semi-automatic

* Brake (Front / Rear): No / Disc

* Starting system: Electric start

* Battery spec: 12V, 7AH

* Front suspension details: Double A x swing arm

* Rear suspension details: Mono shock swing arm

* Front tire spec: 16X8-7

* Rear tire spec: 16X8-7

* Vehicle dimensions: 138 x 75 x 90 cm

* Wheel base: 880 mm

* Seat height from ground: 60 cm

* Ground clearance: 100 mm

* Load capacity: 75 kg

* Fuel tank capacity: 3.2 L
