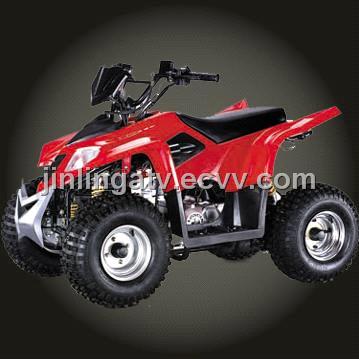

ATV (JLA-06)

* Engine type: 50cc/70cc/90cc/110cc, 4 storke

* Bore and stroke : 39x41. 4/47x41. 4/47x49. 5/52. 4x49. 5

* Compression rating: 8.8: 1

* Max. Torque : 4.2Nm/5000rpm , 4.2Nm/5000rpm, 5.2Nm/5000rpm,

5.5Nm/5000rpm

* Max. Power: 3.0Kw/8500rpm/, 3.0kw/7500rpm, 3.3kw/7500rpm,

3.6kw/7500rpm

* Ignition type: CDI

* Transmission: automatic, chain/4-speed, semi-automatic

* Brake (Front/Rear): No/Disc

* Starting system: Electric start

* Battery spec. :12V, 7AH

* Front suspension details: double A x swing arm

* Rear suspension details: mono shock swing arm

* Front tire spec.: 16X8-7

* Rear tire spec.: 16X8-7

* Vehicle dimensions: 138x75x90cm

* Wheel base: 880mm

* Seat height from ground: 60cm

* Ground clearance: 100mm

* Load capacity: 75kg

* Fuel tank capacity: 3. 2L
