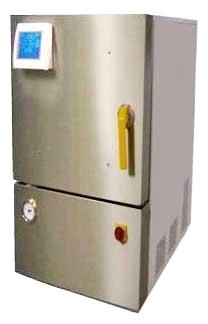

AUTOCLAVE STEAM STERILIZER 230L

Detailed Product Description

Standard Features:

Control system:

Touch screen version of the Tried and Tested Secure2 controller
Audible warnings End of Cycle, Water Level, Faults etc
Easy Fingertip Operation even when wearing Lab Gloves
Selectable security operating levels with access PIN codes
Built-in provision for mandatory Safety valve tests etc
Internal and External plus 2 - colour printer options
Easy selection of program by Name and Settings
Onscreen chart graph display of running cycle
Easy Muting for audible Cycle warnings
Audible confirmation of key presses
Continuous Onscreen Display of Program Info, Times, Temperatures, Pressure, Cycle stage, Cycle Counter etc
New Virtual Printer Stores cycle details (1-2 months typical usage stored) in Printout format for easy download to PC laptop or external printer
Internal Fault Detection with automatic fault diagnosis and 3 fault memories for easy servicing
Simple to use Controls set out on the large 5.7 illuminated display with menus for all operations
Optional Communications including Ethernet, and USB connections

Safety Features:

Cooling locks: (in accordance with H.S.E. PM73) preventing opening of autoclave above 80oC. (for fluid & discard cycles
Audible & Visual Alarms: for Cycle Fault - Cycle Interruption - Sterilize Failure - Water Low - Door Unlocked
Door Seal: Self Energising / Service independent
Door: The door release is interlocked by both temperature and pressure to ensure all residual pressure has completely and effectively vented to atmosphere before the doors can be opened. The door will retain its positions in the event of failure of any service. The door is thermally insulated to prevent the surface temperature presenting a hazard to operators. The surface temperature will not exceed IEC 61010 requirements. A cycle cannot start until the door is closed and locked. Steam cannot be applied to the chamber unless the door is closed and locked.
Interlocks: Safety interlocks are provided, and are achieved by hardware, separate from and additional to the control system. All interlocks are configured to fail-safe and to provide a signal to the control system to indicate that normal operation has been prevented, and to terminate the current cycle. The interlock system is designed so that its function can be tested during routine maintenance. Safety related interlocks are either hard wired or piped. The following safety interlocks are provided: If the door is not closed, the steam supply to the chamber will be isolated If the pressure in the chamber exceeds 0.15 bar the door will remain locked.

Brand Name:

MEGA MED
