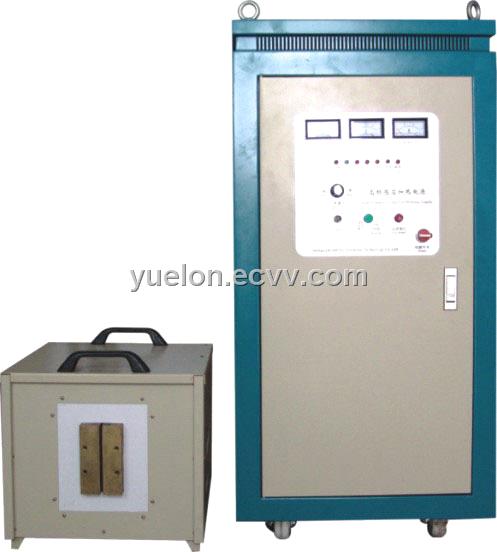

High Frequency Induction Heating Machine - 160KW
Main specification:
1. Model: HF-160AB
2. Maximum input power: 160KW
3. Oscillating frequency: 10-25KHZ
4. Work power: 380V, 3 phase, 50 or 60HZ
5. Maximum input current: 350A
6. Duty cycle: 100%
7. Cooling water flow/pressure: 89L/Min 0. 1Mpa.
8. Water temperature protection point: 45oC
9. Auto heating time, retaining time: 0. 1-99. 9Second
10. Weight and size:
N. W. / G. W. (kg): 152kg/160kg
Size (L xW xH): 650x600x1380mm
Packing size:
750x700x1480mm
