SCM series Super Thin Mill Application
SCM series super thin mill is on the bases of our company’s production experience for more than 15 years. We absorb advantags from the same trade abroad and at home. We review, research and try on 12 kinds of mills and horizontal hammer crushers. And finally we developed this high-efficiency and low-cost super thin mill by investigation and trial. This grinding mii is a equipment which produces thin powder and super thin powder. It is applicable to non-flammable and non-explosive materials with hardness less than 6, such as calcite, chalk, limestone, dolomite, kaolin, bentonite, talcum, talc, magnesite, illite, pyrophyllite, vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite, gypsum, alum earth, graphite, fluorite, variscite, potash ore, floatstone.

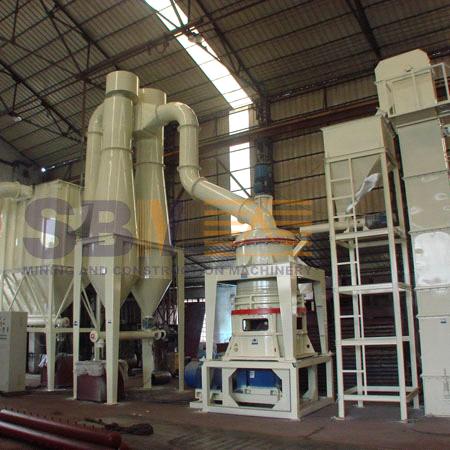

SCM series Super Thin Mill System The whole system of the flour mill consists of main unit, deceleration machine, classifier, blower, hammer crusher, dustpan elevator, electro-magnetic vibrating feeder, impulse dust cleaner, piping device, cyclone collector device, classifier, high-pressure motor and muffler.
SCM series S super thin mill Technical parameter
|
Model |
SCM6015 |
SCM8021 |
SCM10027 |
|
Roller number |
15 |
21 |
27 |
|
Diameter (mm) |
Φ600 |
Φ800 |
Φ1000 |
|
Ring number |
2 |
2 |
2 |
| Main unit speed(mm) |
235 |
235 |
235 |
| Max. Feeding size(mm) |
10 |
10 |
10 |
| Final size (mesh) |
325-2500 |
325-2500 |
325-2500 |
| Capacity (kg/h) |
350-2500 |
600-4000 |
900-6000 |
| Overall dimension (m) |
10×2×5. 5 |
12. 4×2. 5×5. 8 |
14. 5×3. 8×6. 3 |
|
Name |
|
Unit |
Specification and technical data |
|
SCM6015 |
SCM8021 |
SCM10027 |
|
Motor of main unit |
Model |
|
Y250-4 |
Y250-4 |
Y250-4 |
|
Power |
Kw |
37 |
55 |
90 |
| Adjustable motor of classifier |
Model |
|
Y180M-4 |
Y180M-4 |
Y2VP200L_4 |
| Power |
Kw |
11 |
18. 5 |
30 |
| Motor of elevator |
Model |
|
Y100L-4 |
Y100L-4 |
Y100L_4B3 |
| Power |
Kw |
3 |
3 |
3 |
| Motor of blower |
Model |
|
Y225M-2 |
Y225M-2 |
Y2_280M_2 |
| Power |
Kw |
30 |
45 |
90 |
| Hammer crusher |
Model |
|
250-400 |
250-400 |
250-400 |
| Power |
Kw |
5. 5 |
5. 5 |
5. 5 |
| Vibrating feeder |
Model |
|
GZ1F |
GZ1F |
GZ1F |
| Power |
Kw |
0. 06 |
0. 06 |
0. 15 |
| Unload valve |
Model |
|
ZJD-1: 40 |
ZJD-1: 40 |
ZJD Y802-4 |
| Power |
Kw |
0. 75 |
0. 75 |
3 |
| Impulse dust cleaner |
Model |
|
BMC72-11 |
BMC72-11 |
BMC72-11 |
| Power |
Kw |
3 |
3 |
3 |
Note: This specification is just reference, any changes are subject to the products .
| Place of Origin: | Shanghai in China |
| Model No: | SCM6015, SCM8021, SCM10027 |
| Brand Name: | SBM |
| Certificate: | ISO9001:2000 |
| Other Price Terms: | CIF, CFR, negotiable |
| Payment Terms: | L/C,T/T(Bank Transfer), |
| Others Payment Terms: | negotiable |
| Minimum Order: | Set/Sets 1 |
| Package: | export standard |
| Delivery Time: | 30 days |
