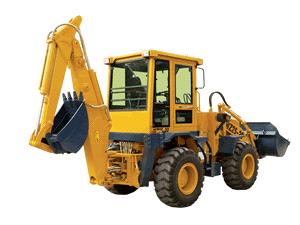

Backhoe loader

Detailed Product Description

Rated capacity for buckket	m³	0.9
Rated Loading	kg	1600
Break out force	kN	49
Maximum tractive effort	kN	38
Tipping load	kN	32
Travel speed in forward 1	km/h	0-11
Travel speed in forward 2	km/h	0-27
Travel speed in reverse 1	km/h	0-10
Travel speed in reverse 2	km/h	0-26
Dump height	mm	2600
Reach fully raisde	mm	880
Hoe bucket capacity	m³	0.2-0.3
Maximum digging depth	mm	4100
Maximum digging radius	mm	5000
Boom rotation angle	o	180
Engine model		4102BG
Engine model		4102GB
Engine rated power	kW	50
Engine rated revolutions per minute	r/min	2400
Maxinum articute angle (Left/Right)	o	35
Maxinum climbing ability	%	45
Minimum turning radius (the center of the forward wheel)	mm	4190
Operating mass	kg	6400
Ocerall dimension (LWH)	mm	650020603300
