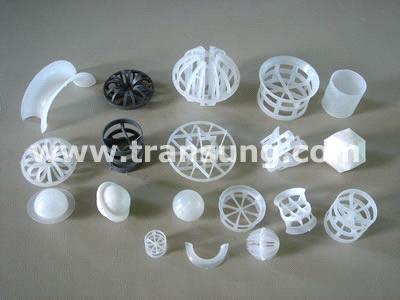

Plastic random packing

Plastic random packing is made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chloridized polyvinyl chloride (CPVC) and polyvinylidene fluoride (PVDF). It has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60℃to 150℃. For these reasons it is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc.

Product	Sizes（mm）
Pall Rings	Φ16、Φ25、Φ38、Φ50、Φ76
Rachig rings	Φ16、Φ25、Φ38、Φ50、Φ76
Conjugate Rings	Φ16、Φ25、Φ38、Φ50、Φ76、Φ100
Cascade Mini Rings	Φ16、Φ25、Φ38、Φ50、Φ76
Rosette Packings	Φ25、Φ47、Φ51、Φ73、Φ95、Φ145
Saddles	Φ25、Φ38、Φ50、Φ76
Heilex rings	Φ50、Φ76、Φ100
Ball-Shaped Packing Polyhedral Hollow Ball Packings	Φ25、Φ38、Φ50、Φ76
Ball-Shaped Packing Hollow Floatation Ball Packings	Φ30*1.0 Φ38*1.2 Φ50*1.5

Physical & chemical properties of plastic random packing

Performance / Material	PE	PP	RPP	PVC	CPVC	PVDF
Density (g/cm3)	0.94-0.96	0.89-0.91	0.93-0.94	1.32-1.44	1.50-1.54	1.75-1.78
Operation Temp.(℃)	90	>100	>120	>60	>90	>150
Chemical corrosion resistance	Good	Good	Good	Good	Good	Good
Compression Strength(Mpa)	>6.0	>6.5	>7.0	>6.0	>8.0	>10.0







61Snowflake

Snowflake Performance:

1)Lowest Pressure Drop and Highest Capacity

2)Lowest pressure drop of any Koch-Glitsch plastic packing.

3)Low pressure drop and high capacity allows smaller column diameter and blower sizes in new installations.

4)Low pressure drop minimizes process back-pressure from scrubbers.

5)Low pressure drop substantially reduces energy consumption.

Snowflake Physical property

Item	Void Fraction %	Bulk Weight g/m3
Index	97	51

Snowflake Applications:

1)Chlorine and Bromine production plants

2)Emergency scrubbers

3)Air and water coolers in air separation plants

4)HCl absorption in various processes

5)Environmental scrubbers and strippers

Snowflake High Efficiency and Capacity

1)High capacity for high liquid rates allows reduction in column diameter in new installations.

2)Exceptional efficiency at low liquid rates improves separation performance and allows reduction in column height in new installations.





62Teller Rosette

It was designed by Tell A. J in 1956, so it called Teller Rosette Ring. The packing liked ellipse is consist of many enlaced cirques. For high liquid load in lacuna of packing, so prolong time of gas-liquid contact, enhance the efficiency to transfer, based on these of characteristics of big voidage, low pressure drop, the sufficiency gas-liquid contact, low weight , high efficiency of transfer, it is widely available in the washing, refining tower.

Type	D*H*T	Bulk number n/m3	Bulk density Kg/m3	Specific area m2/m3	Void volume m3/m3
Dg25	25*9*(1.5*2)	170000	170	195	0.82
Dg47	47*19*(3*3)	32500	111	185	0.88
Dg51	51*19*(3*3)	25000	103	180	0.89
Dg72	73*28*(3*4)	8000	80	127	0.89
Dg95	95*37*(3*6)	3900	88	94	0.90
Dg145	145*48*(3*6)	1100	47	65	0.95





63Plastic Saddles

The middle part of this packing is the arc liquid channer so as to the flow air along with arc liquid channel. As big voidage, low pressure drop, low weight of mass transfer unit, high flood point, abundant of gas-liquid contact, the application temperature ranges in 60℃ to 150℃, it is very widely adopted in packing tower of Alkali-chloride industry petroleum industry, coal gas industry chemical industry, environment industry.







64Plastic Pall Ring

It has the characteristic of low pressure drop, large void space, large flux, high efficiency, low energy consumption etc., Further more excellent distribution in tower packing, it is widely apply in the separation and absorption process, device of reducing pressure. The system of deviating sulfur. Isolation of Ethylbenzene Toluene, Trimethylpentane etc.





65Plastic Rachig Ring
