UV Coating Machine

Detailed Product Description

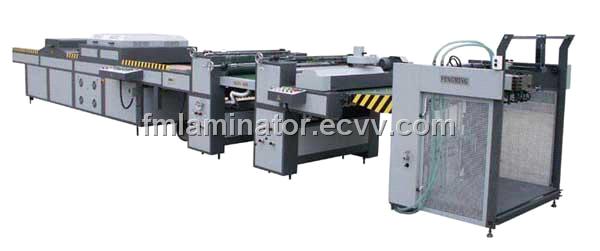

SGUV-1000/1200A UV automatic coating machine has experienced technical upgrades based on the original three-roller coating machine. With frequency conversion control adopted for metering roll, oiling volumes for papers of different thickness can be controlled through different linear veldt, straightforward and easy to operate, and it achieves fundamental changes in the surface fineness and smoothness of coating products without orange peel veins by and large, thus optimize polishing products.

Technical Variables

Model	Max.sheet size	Min.sheet size	Max coating width	Paper thickness	Max.feeder speed	Dimension	Total weight	Total power
UV 1200A Coating Machine	780×1092mm	340×420mm	1150mm	80-600g/m ²(equipped with wind-knife)200-600g/m ²	800(sheets/hour)4000sheets/hour)for thin paper	12000×1960×1600mm	5500kg	65kw
UV1000A Coating Machine	590×882mm	340×420mm	950mm	80-600g/m ²(equipped with wind-knife)200-600g/m ²	8000 sheets/hour 4000sheefs/hour for thin paper	12000×1760×1600mm	5000kg	65kw
Note: the maximum paper feeding speed is fit for paper of 787×540mm

Place of Origin:	Zhejiang in China
Model No:	01
Brand Name:	FengMing
Payment Terms:	L/C,T/T(Bank Transfer),
Minimum Order:	Set/Sets 1
Package:	Wooden box
Delivery Time:	2208/21/10
