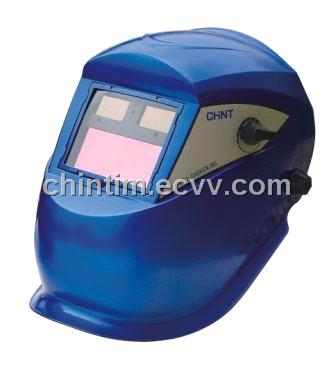

Welding Helmet

Detailed Product Description

1. Model：ZTG-6P/FS-B6

2. Adapt to CHINT ADF FS-B2,FS-B4,FS-B4a,FS-B6

3.Fire resistance: yes.

4.Material & Weight: PA/PP, 0.518kgs

5. Viewing area: 96*46mm (3.79”*1.81”)

6. UV/IR protection: up to shade DIN 15 at all time

7. Light state: shade DIN 4

8. Variable shade: from DIN 9 to DIN 13

9. Power supply: solar cells, two lithium batteries be changed, with on/off switch

10. Low battery show: on

11. Power on/off: fully automatic

12. Switching time:

a) Light to dark: 1/25,000s

b) Dark to light: 0.2s~1s potentiometer adjust

c) Sensitivity: potentiometer adjust, adapt to TIG MIG

13.Colour: blue/red

14. Anti-jamming:yes

14.Dimension: 340mm*220mm*190mm

15.Packing methods:

a)4 pcs of helmets packed in one carton( normal).

N/G weight: 2.256/5.143KGS Size of carton: 540×534×316mm

b)10 pcs of helmets packed in one carton( economical).

N/G weight: 5.64/10.72KGS Size of carton: 742*534*290mm

c)20 pcs of helmets packed in one carton (economical).

N/G weight: 11.28/20.597KGS Size of carton: 742*534*440mm
