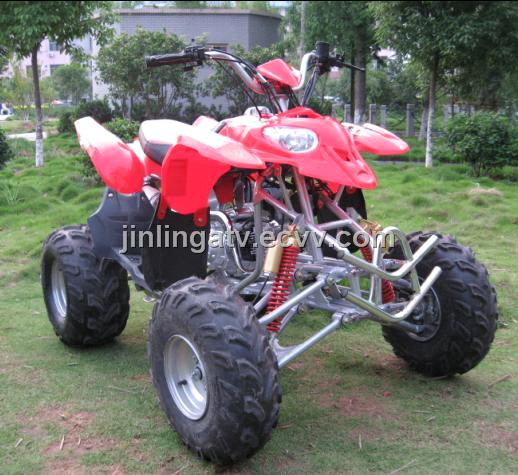

ATV (JLA-18)

Detailed Product Description

Product information
Engine:
Engine type	Single cylinder,4 stroke, air-cooled
Engine displacement（ml）	109
Bore x stroke（mm）	52*49.5
Max power （km/（r/min））	6/8000
Max torque(n.M/(r/min))	7/6000
Minimum fuel consumption (g/kw.H)	367
Transmission:
Start mode	Electrical
Transmission mode	Chain
Brake mode	Drum/disc
Brake distance(m/30km)	7
Shift speed tpye	Four, with reverse gear
Clutch mode	Automotive
External condition:
Length x width x height（mm）	1540850970
Minimum turning radius（mm）	3000
Climbing degree	27
Lamp	Head lamp
Seat height(mm)	670
Minimum ground clearance（mm）	120
Top speed(km/h)	55
Tyre dimension(front/rear)	At197-8/at189.5-8
Cover material	Pp
Color	Red/blue/green/black/yellow/
Packing:
Carton dimensions:	1470 x 850 x 770mm
N.w.	130kg
G.w.	155kg
Conveyance:
Qty/20' gp	30pcs
Qty/40' gp	66pcs
Qty/40' hq	66pcs
