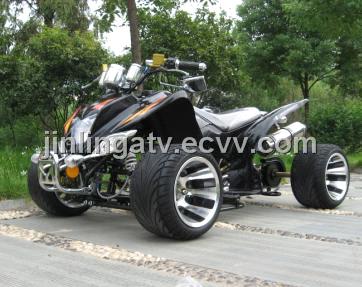

ATV110CC (JLA-110F1)

Detailed Product Description

1) Engine type: 110CC

2) Max torque: 5. 5Nm/5000rpm

3) Max power: 6kw/7500rpm

4) Ignition type: CDI

5) Transmission: 4-speed, semi-automatic reverse

6) Brake (Front/Rear): Disc/Disc

7) Starting system: Electric start

8) Battery spec: 12V, 9AH

9) Front suspension details: double A x swing arm

10) Rear suspension details: mono shock swing arm

11) Front tire spec: 235/30-10. Rear tires spec : 235/30-10.

12) Vehicle dimensions: 190x110x103cm

13) Wheel base: 1300mm

14) Seat height from ground: 63cm

15) Ground clearance: 80mm

16) Load capacity: 150kg

17) Fuel tank capacity: 5.5L

18) Gross weight in carton: 160kg

19) Net weight: 140kg

20) Packing size: 155x83x71cm

Conveyance:

30pcs/20ft 63pcs/40ft

63pcs/40'HQ
