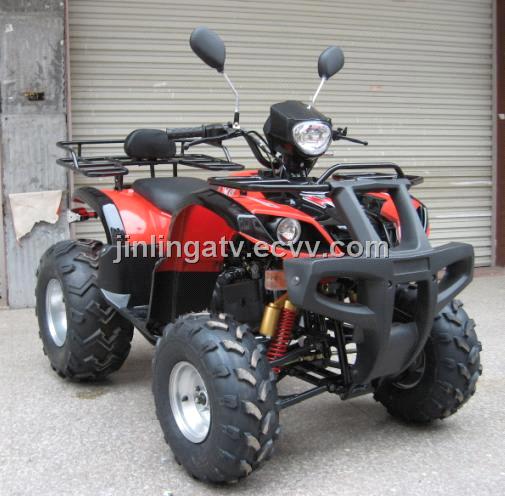

ATV (JLA-16)-150GY6

Detailed Product Description

1) Engine type : GY6-150cc, 4 storke

2) Max torque : 10Nm/5500rpm

3) Max power : 9. 3kw/7500rpm

4) Ignition type : CDI

5) Transmission : automatic

6) Brake (Front/Rear): Drum/Disc

7) Starting system : Electric start

8) Battery spec : 12V, 9AH

9) Front suspension details : double A x swing arm

10) Rear suspension details : mono shock swing arm

11) Front tire spec : 19x7-8 rear tires spec : 18x9. 5-8

12) Vehicle dimensions : 155x88x95cm

13) Wheel base : 1000mm

14) Seat height from ground : 75cm

15) Ground clearance : 100mm

16) Load capacity : 140kg

17) Fuel tank capacity : 4. 5L

18) Gross weight in carton : 160kg

19) Net weight : 140kg

20) Packing size: 148x83x76cm

Conveyance:

33pcs/20ft 66pcs/40ft

66pcs/40'HQ
