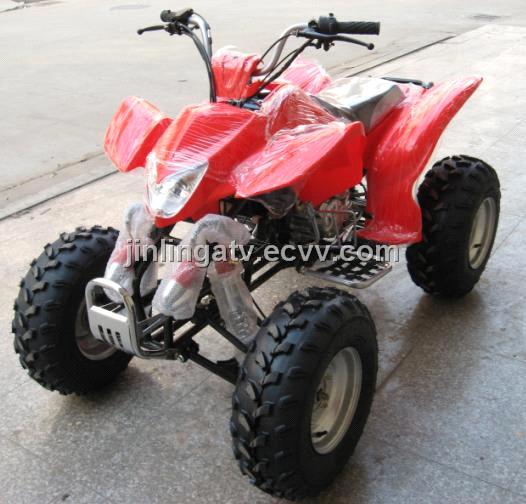

ATV (JLA-22)

Detailed Product Description

1. Engine type: 196 cc / 248 cc, 4 storke, water / air cooled

2. Max torque: 13.5 N.M / 5500 rpm, 17.5 N.M / 5000 rpm

3. Max power: 10 kw / 7500 rpm, 11 kw / 7500 rpm

4. Ignition type: CDI

5. Transmission: Manual clutch, 4-speed, reverse gear, chain

6. Brake (Front / Rear): Drum / Disc

7. Starting system: Electric start

8. Battery spec: 12 V, 9 AH

9. Front suspension details: Double A x swing arm,:air chamber shock absorbers

10. Rear suspension details: Mono shock swing arm

11. Front tire spec: 19 x 7 - 8, rear tires spec: 18 x 9.5 - 8

12. Vehicle dimensions: 155 x 81 x 100 cm

13. Wheel base: 100 mm

14. Seat height from ground: 75 cm

15. Ground clearance: 1000 mm

16. Load capacity: 150 kg

17. Fuel tank capacity: 7.8 L

18. Gross weight in carton: 160 kg

19. Net weight: 140 kg

20. Packing size: 147 x 83 x 77 cm

Conveyance:

33 pcs / 20 ft, 66 pcs / 40 ft, 66 pcs / 40' HQ
