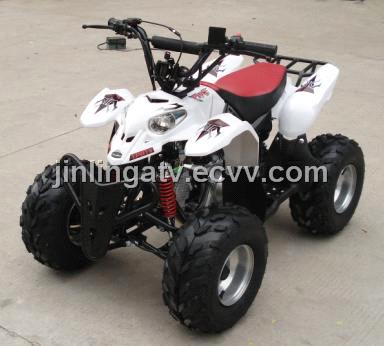

JL ATV (JLA-09)

Detailed Product Description

1). Engine type: 48cc/72cc/86cc/97cc, 4 storke

2). Max torque: 4.2Nm/5000rpm , 4.2Nm/5000rpm, 5).2Nm/5000rpm, 5. 5Nm/5000rpm

3). Max. Power : 3.0Kw/8500rpm, 3.0kw/7500rpm, 3).3kw/7500rpm, 3.6kw/7500rpm

4). Ignition type: CDI

5). Transmission: automatic, chain

6). Brake (Front/Rear): Drum/Disc

7). Starting system : Electric start

8). Battery spec.: 12V, 5AH

9). Front suspension details: double A x swing arm

10). Rear suspension details: mono shock swing arm

11). Front tire spec.: 16/8-7 rear tires spec.: 16/8-7

12). Vehicle dimensions: 152x86x91cm

13). Wheel base: 880mm

14). Seat height from ground: 60cm

15). Ground clearance: 100mm

16). Load capacity: 75kg

17). Fuel tank capacity: 3.2L

18). Gross weight in carton: 95kg

19). Net weight: 73kg

20). Packing size: 125x76x67cm
