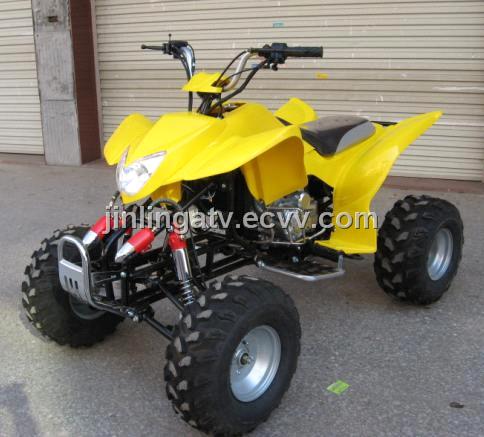

ATV (JLA-22)

Detailed Product Description

1) engine type: 196cc/248cc, 4 storke, Water / Air Cooled.

2) max torque: 13.5Nm/5500rpm, 17.5Nm/5000rpm

3) max power: 10kw/7500rpm, 11kw/7500rpm

4) ignition type: CDI

5) transmission: manual clutch, 4-speed, reverse gear, chain

6) Brake (Front/Rear): Drum/Disc

7) starting system: Electric start

8) battery spec: 12V,9AH

9) front suspension details: double A x swing arm,:air chamber shock absorbers

10) rear suspension details: mono shock swing arm

11) front tire spec: 19x7-8 rear tires spec: 18x9.5-8

12) vehicle dimensions: 155x81x100cm

13) wheel base: 100mm

14) seat height from ground: 75cm

15) ground clearance: 1000mm

16) load capacity: 150kg

17) fuel tank capacity: 7.8L

18) gross weight in carton: 160kg

19) net weight: 140kg

20) packing size: 147x83x77cm

Conveyance:

33pcs/20ft 66pcs/40ft

66pcs/40'HQ
