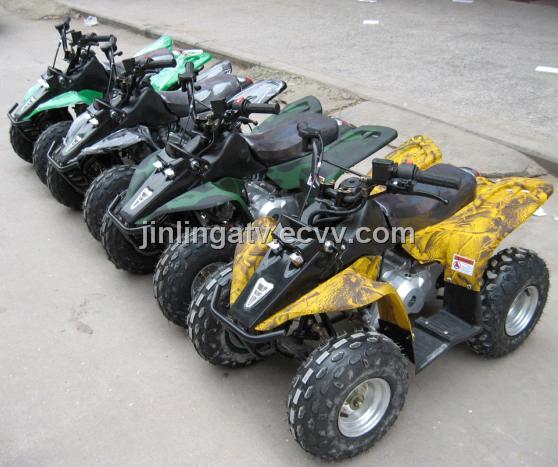

ATV (JLA-01)

-Engine type: 50cc/70cc/90cc/110cc, 4 storke;

-Bore and stroke: 39x41.4/47x41.4/47x49.5/52.4x49.5

-Compression rating: 8.8:1

-Max torque: 4.2Nm/5000rpm, 4.2Nm/5000rpm, 5.2Nm/5000rpm, 5.5Nm/5000rpm

-Maxpower: 3.0Kw/8500rpm/, 3.0kw/7500rpm, 3.3kw/7500rpm, 3.6kw/7500rpm

-Ignition type: CDI

-Transmission: automatic, chain/2-speed,CVT, semi-automatic

-Brake (Front/Rear): DRUM/Disc

-Starting system :Electric start

-Battery spec :12V,7AH

-Front suspension details :No

-Rear suspension details :mono shock swing arm

-Front tire spec : 145/70-6

-Rear tires spec : 145/70-6

-Vehicle dimensions :114x74x64cm

-Wheel base :690mm

-Seat height from ground :60cm

-Ground clearance :100mm

-Load capacity :80kg

-Fuel tank capacity :3.4L
