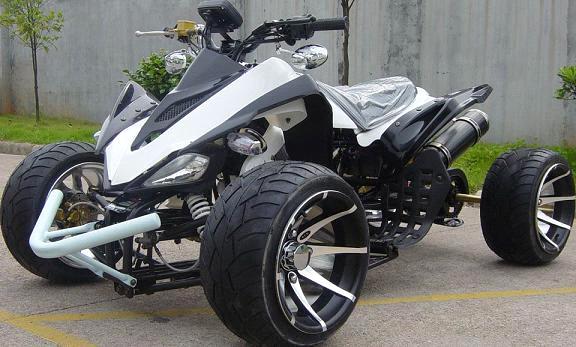

ATV (JLA-812)

Detailed Product Description

1) Engine type: 48CC/ 72CC/ 86CC/96CC/ 107CC /124CC

2) Max. Torque: 4.2Nm/5000rpm, 4.2Nm/5000rpm, 5.2Nm/5000rpm,

5.5Nm/5000rpm

3) Max. Power: 3.0kw/8500rpm, 3.0kw/7500rpm, 3.3kw/7500rpm,

3.6kw/7500rpm

4) Ignition type: CDI

5) Transmission: 4-speed, semi-automatic reverse

6) Brake (Front/Rear): Disc/Disc

7) Starting system: Electric start

8) Battery spec: 12V, 9AH

9) Front suspension details: double A x swing arm

10) Rear suspension details: mono shock swing arm

11) Front tire spec: 235/30-12. Rear tires spec: 235/30-12.

12) Vehicle dimensions: 190x110x103cm

13) Wheel base: 1300mm 33pcs/20ft 66pcs/40ft

14) Seat height from ground: 63cm 66pcs/40'HQ

15) Ground clearance: 80mm

16) Load capacity: 150kg

17) Fuel tank capacity: 5L

18) Gross weight in carton: 160kg

19) Net weight: 140kg

20) Packing size: 155x83x71cm
