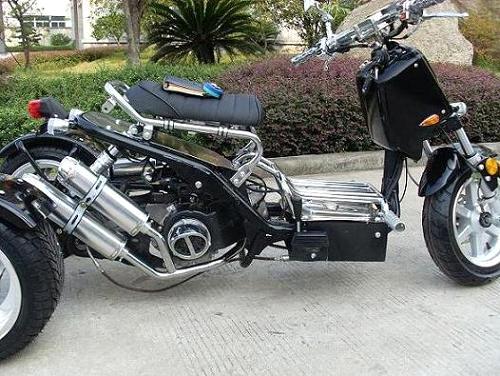

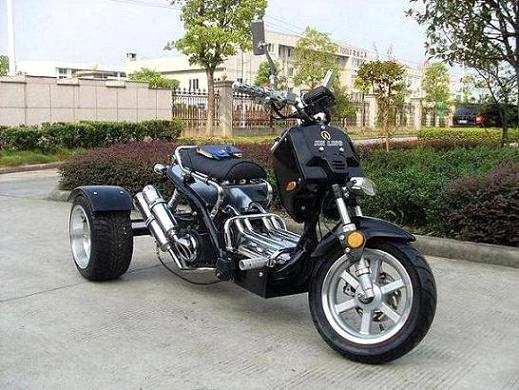

ATV (JLA-811)

1. engine type :GY6-150cc,4 storke
2. max torque :10Nm/5500rpm
3. max power :9.3kw/7500rpm
4. ignition type :CDI
5. transmission :automatic
6.Brake (Front/Rear):Drum/Disc
7. starting system :Electric start
8. battery spec :12V,9AH
9. front suspension details :double A x swing arm
10. rear suspension details :mono shock swing arm
11. front tire spec : 120/70-12.    rear tires spec : 235/30-12.
12. vehicle dimensions :190x105x110cm
13. wheel base :1600mm
14. seat height from ground :69cm
15. ground clearance :130mm
16. load capacity :150kg
17. fuel tank capacity :9L
18. gross weight in carton :160kg
19. net weight :140kg
20. packing size:170x89x90cm

Place of Origin:	Zhejiang in China
Model No:	JLA-811
Brand Name:	Jinling
Payment Terms:	T/T(Bank Transfer),
Minimum Order:	Piece/Pieces 10
Supply Ability:	Piece/Pieces|1000|Month
Package:	Carton outsaid , hob inner
Delivery Time:	25days
