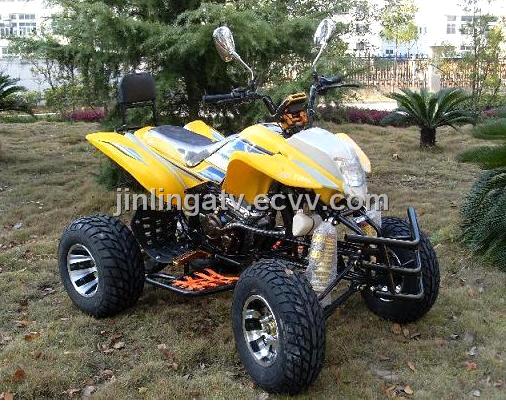

ATV (JLA-21B-EEC)

Detailed Product Description

1). Engine type: 250cc, 4 storke, Water Cooled.

2). Max torque: 17.5Nm/5000rpm

3). Max power: 13kw/7500rpm

4). Ignition type: CDI

5). Transmission: manual clutch, 4-speed, reverse gear, chain

6). Brake (Front/Rear): Disc /Disc

7). Starting system: Electric start

8). Battery spec: 12V, 9AH

9). Front suspension details: double A x swing arm, :air chamber shock absorbers

10). Rear suspension details: inner ballonet absorber

11). Front tire spec: 21 x 7 - 10 rear tires spec: 20 x 10 - 10

12). Vehicle dimensions: 180 x 112 x 113cm

13). Wheel base: 115cm

14). Seat height from ground: 88cm

15). Ground clearance: 120mm

16). Load capacity: 155kg

17). Fuel tank capacity: 4L

18). Gross weight in carton: 170kg

19). Net weight: 155kg

20). Packing size: 148 x 83 x 84cm

Conveyance:

Qty/20' GP: 22 units

Qty/40' GP: 44 units

Qty/40' HQ: 66 units
