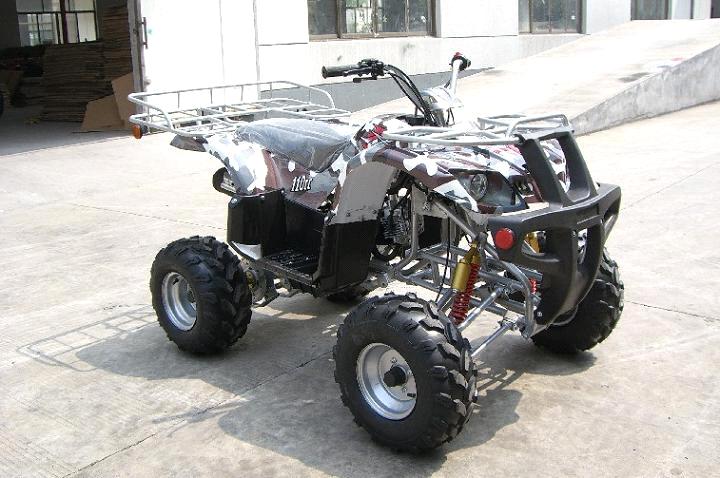

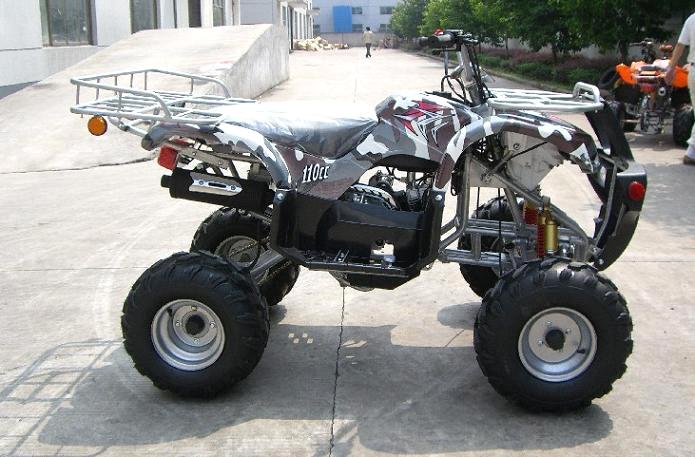

ATV (JLA-14A)

1) Engine type: 107cc/124.1cc4 stroke

2) Max. Torque: 6.5/5000rpm, 8.6Nm/5500rpm

3) Max. power: 4.7kw/7500rpm, 8.0kw/7500rpm

4) Ignition type: CDI

5) Transmission: 4-speed, semi-automatic, reverse gear,

chain

6)Brake (Front/Rear): Drum/Disc

7) Starting system: Electric start

8) Battery spec.: 12V, 9AH

9) Front suspension details: double A x swing arm

10) Rear suspension details: mono shock swing arm

11) Front tire spec.: 19x7-8    rear tires spec.: 18x9.5-8

12) Vehicle dimensions: 176*105*113cm

13) Wheel base: 1200mm

14) Seat height from ground: 80cm

15) Ground clearance: 120mm

16) Load capacity: 150kg

17) Fuel tank capacity: 7.8L

18) Gross weight in carton: 180kg

19) Net weight: 155kg

20) Packing size: 152x83x87cm
