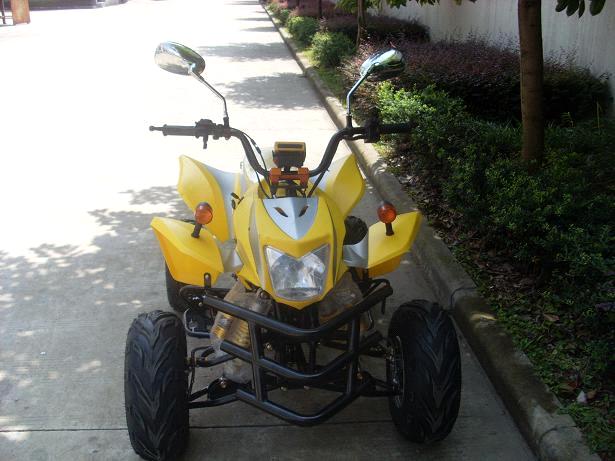

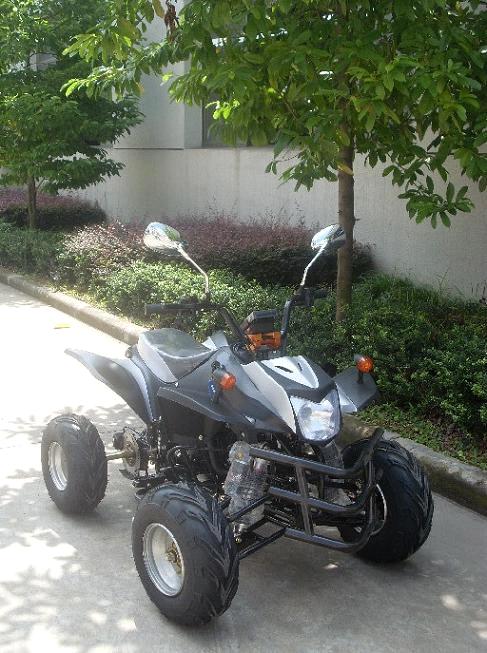

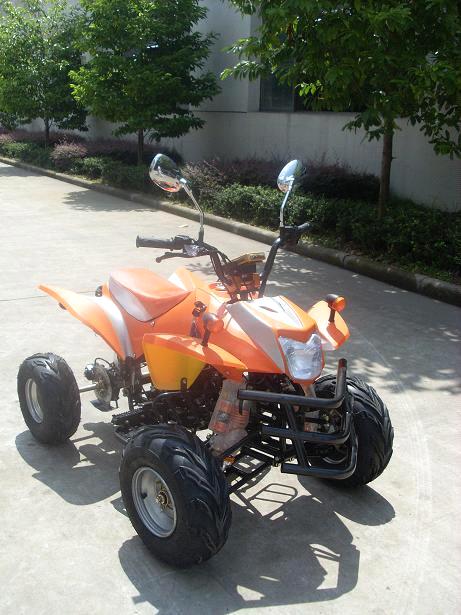

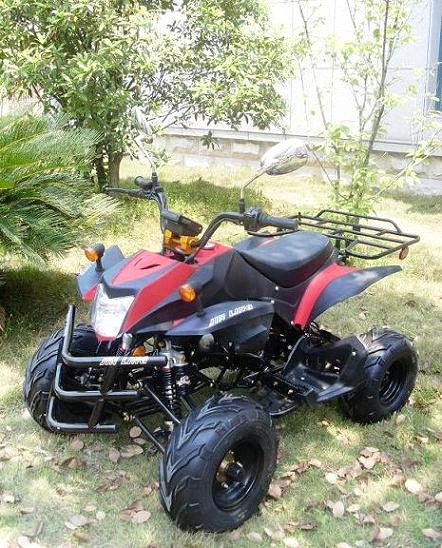

ATV (JLA-07A)

Detailed Product Description

1. Engine type : 48cc

2. Max torque : 4. 2Nm/5000rpm

3. Max power : 3. 0Kw/8500rpm

4. Ignition type : CDI

5. Transmission : automatic, chain, reverse gear

6. Brake (Front/Rear): Disc/Disc

7. Starting system : Electric start

8. Battery spec : 12V, 4AH

9. Front suspension details : double A x swing arm ,, air chamber shock absorbers

10. Rear suspension details : mono shock swing arm,, air chamber shock absorbers

11. Front tire spec : 17x7-8 rear tires spec : 16x8-7

12. Vehicle dimensions : 146x94x90cm

13. Wheel base : 880mm

14. Seat height from ground : 60cm

15. Ground clearance : 100mm

16. Load capacity : 75kg

17. Fuel tank capacity : 3. 2L

18. Gross weight in carton : 95kg

19. Net weight : 73kg

20. Packing size: 129x84x66cm
