Insulation Piercing Connectors

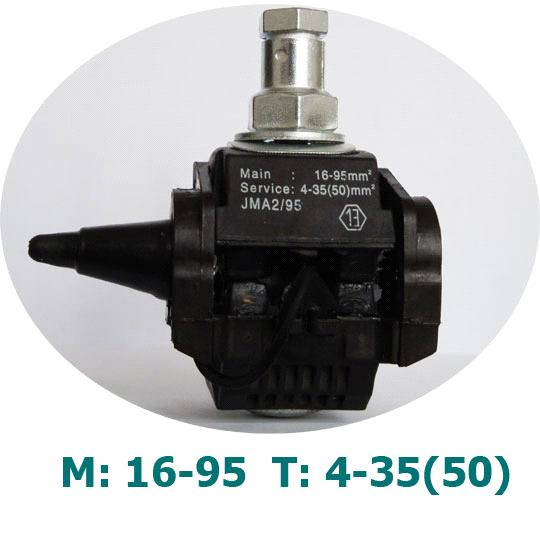

Insulation piercing connector for low voltage ABC cable (IPC)
Waterproof Fire-resistent


Type: JMA2-95

Main: 16-95 mm2
Branch: 4-35(50) mm2
Piercing Depth: ≥3mm
Rating Current: 200A
Exterior Size: 51 x 60 x 87mm
Weight: 183g

Application: Insulation Piercing Connectors for indoor/outdoor are designed for comply with most worldwide standards.

Connection Quality: "Hot spots" are eliminated with a shear head screw that ensures the correct tightening torque.

Easy installation: To install the whole series as only two hex wrenches (1/2" and 5/8").

Safe: I.P.C can be installed on an energized conductor, however, the tap must not be under load.

Corrosion Resistant: Connectors are made from high strength corrosion resistant plastic and galvanized steel bolts (stainless steel is available upon request).

Standard: GB 13140.4-1998 GB/T 2317.3-2000 IEC NFC 33020 EN 61984:2001

Certification: CE certification

Place of Origin:	Zhejiang in China
Model No:	JMA2-95
Brand Name:	JMA
Other Price Terms:	FOB CIF CNF
Payment Terms:	L/C,T/T(Bank Transfer),
Minimum Order:	Piece/Pieces 5000
Supply Ability:	Piece/Pieces|100000|Month
Package:	100pcs/carton
Delivery Time:	5days in min order quantity
